Description
Sealey Tool Promotion - offer price ends 31 December 2026

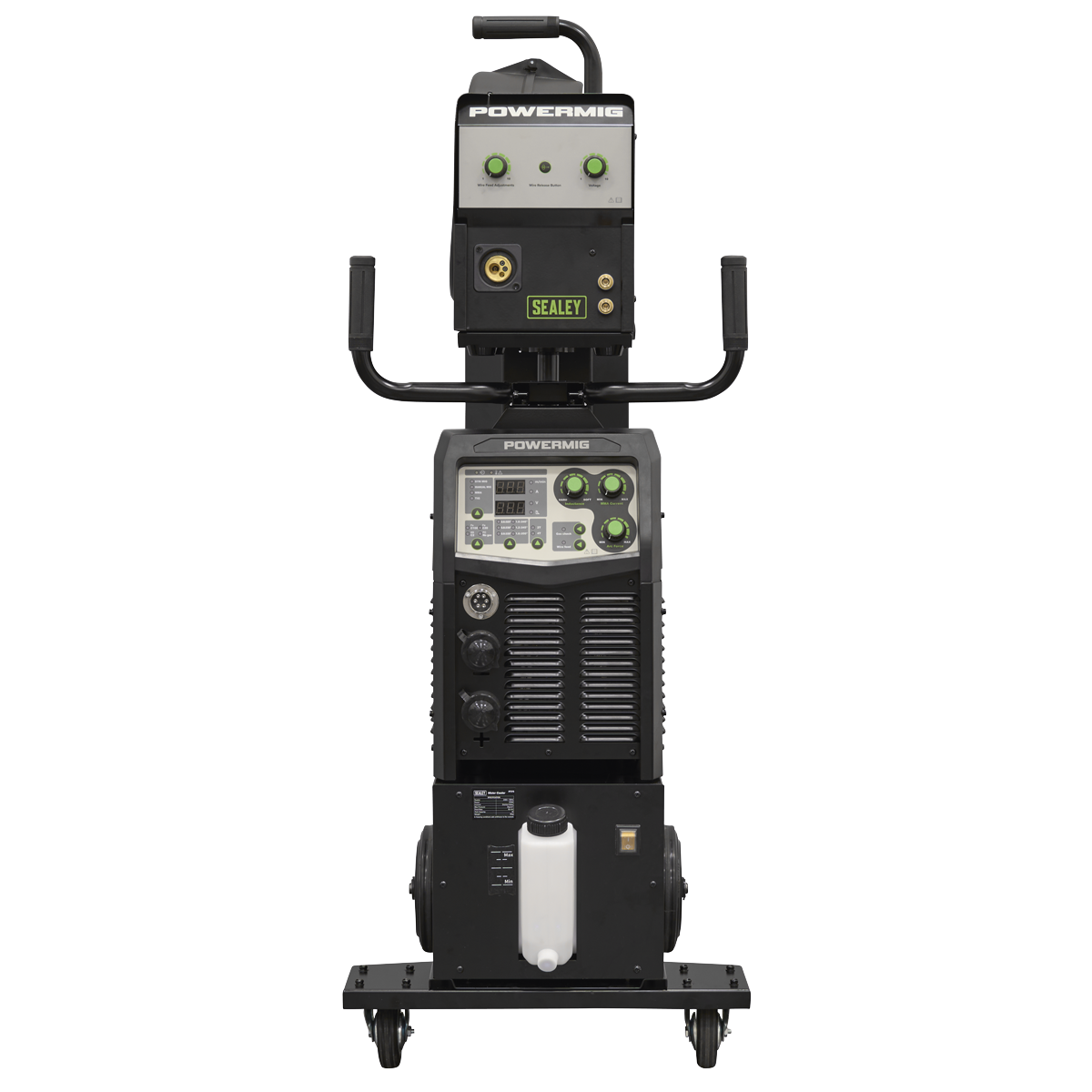

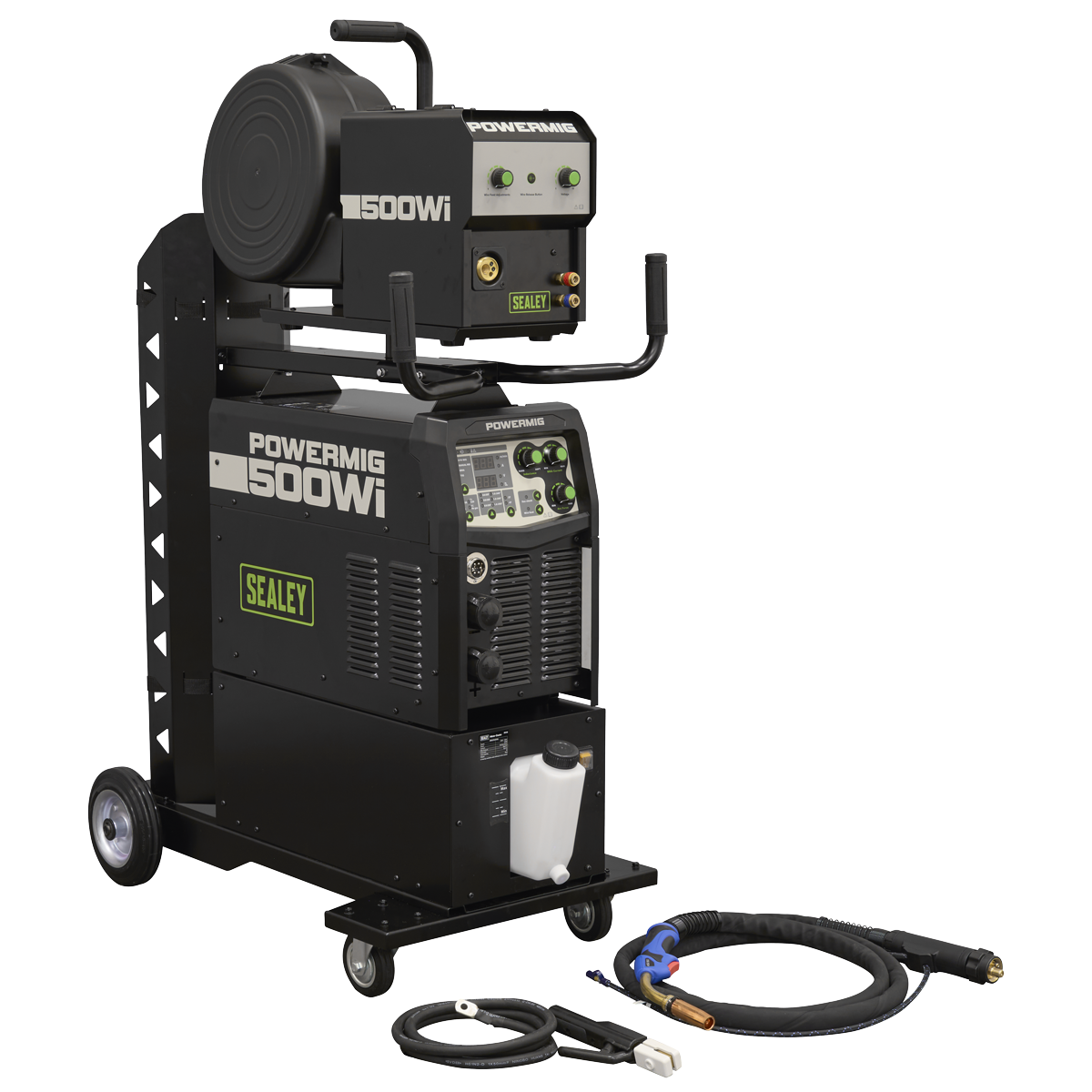

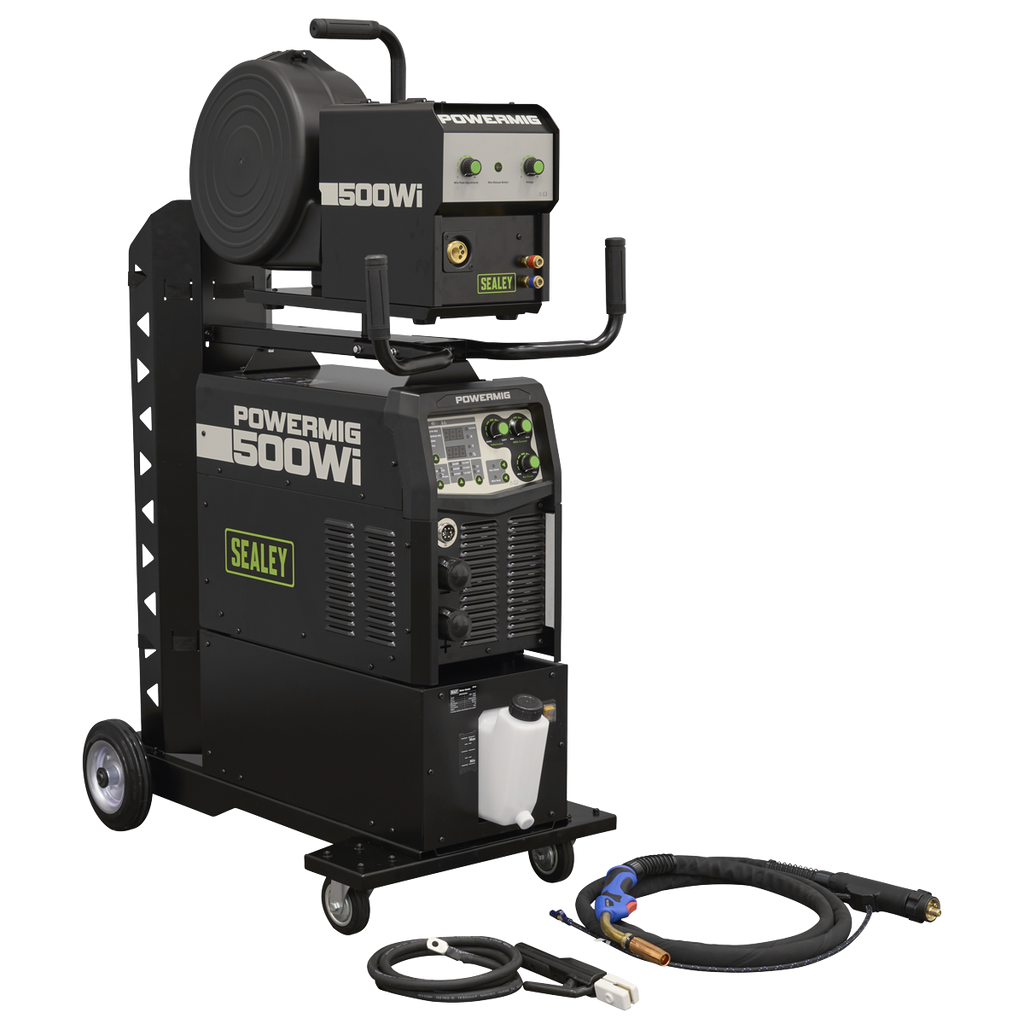

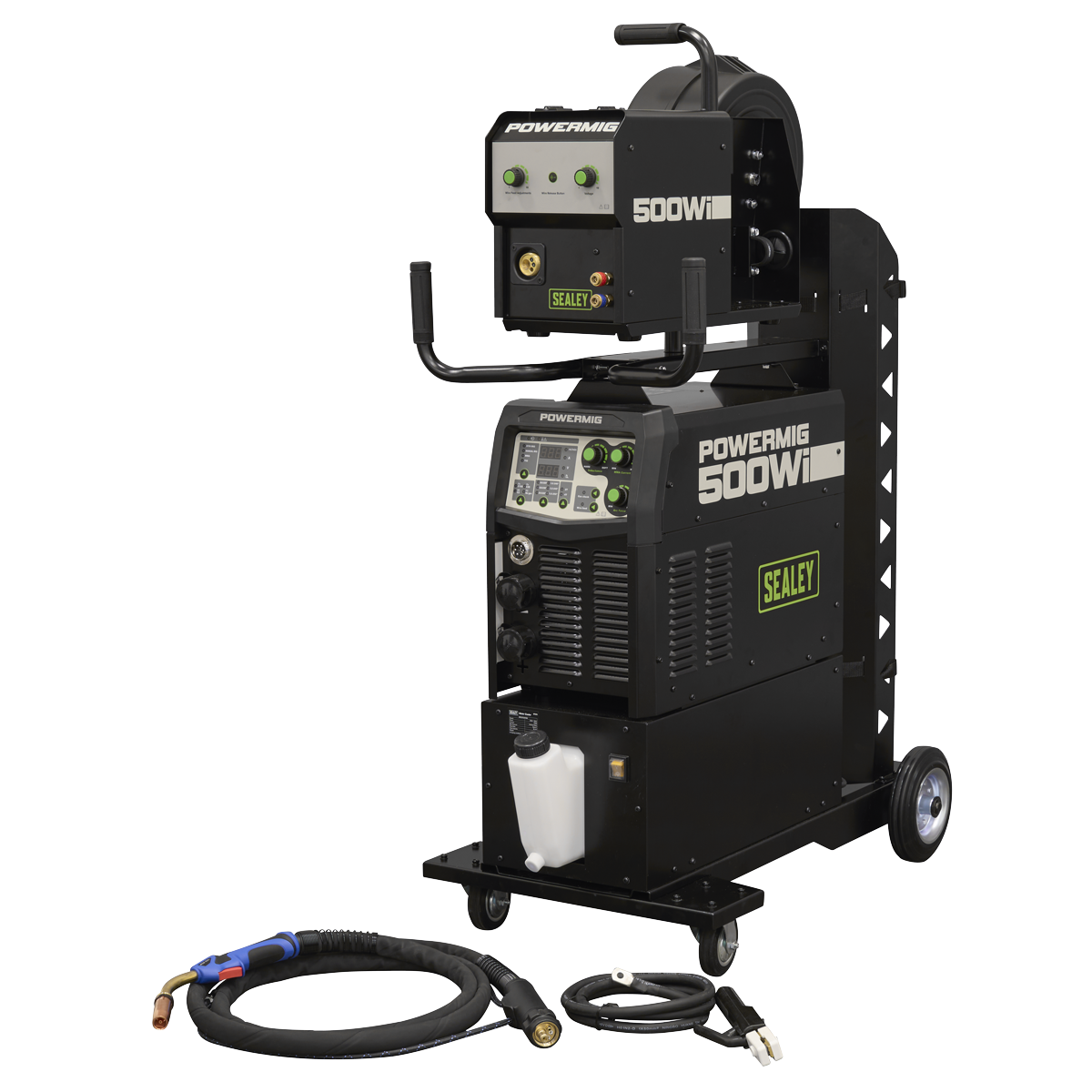

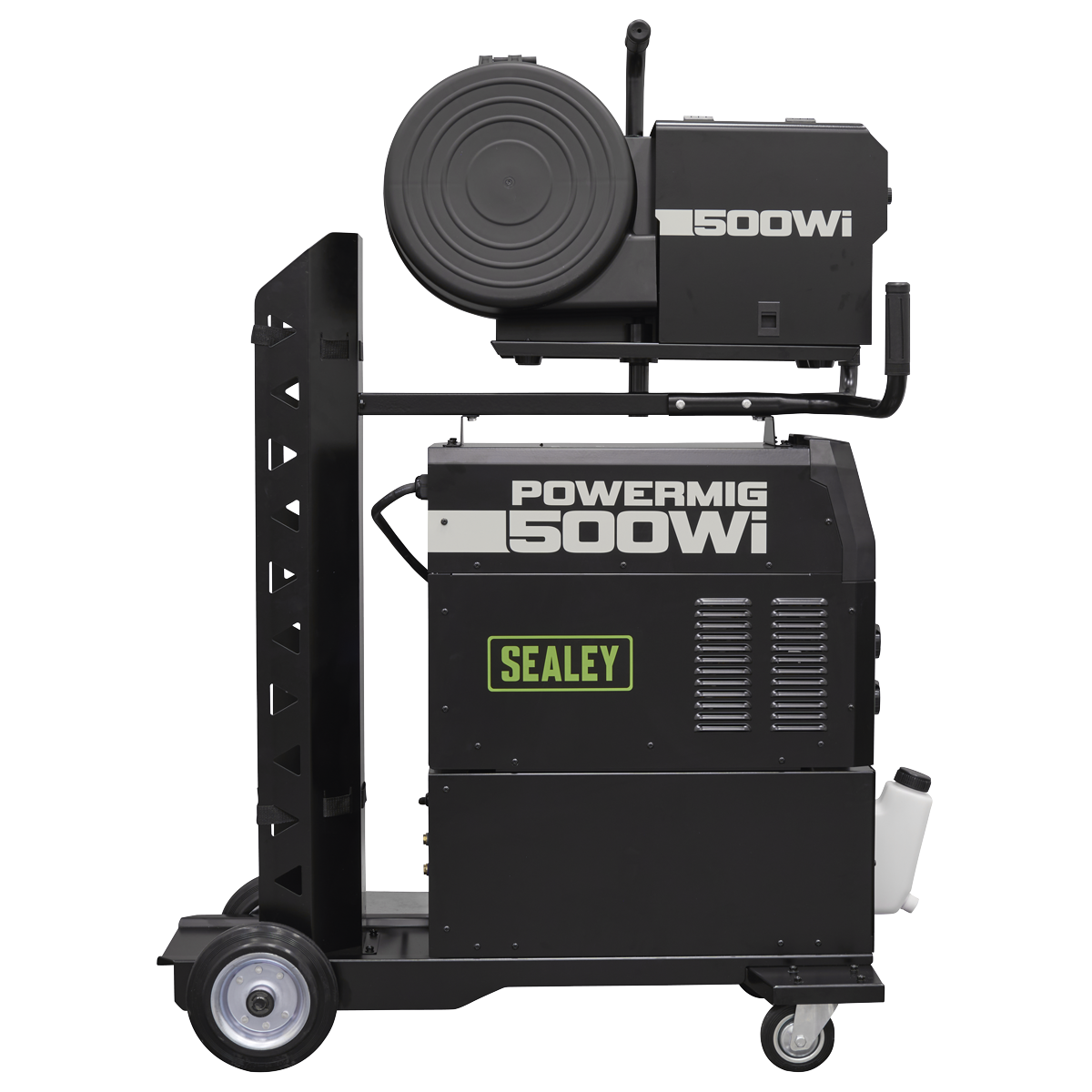

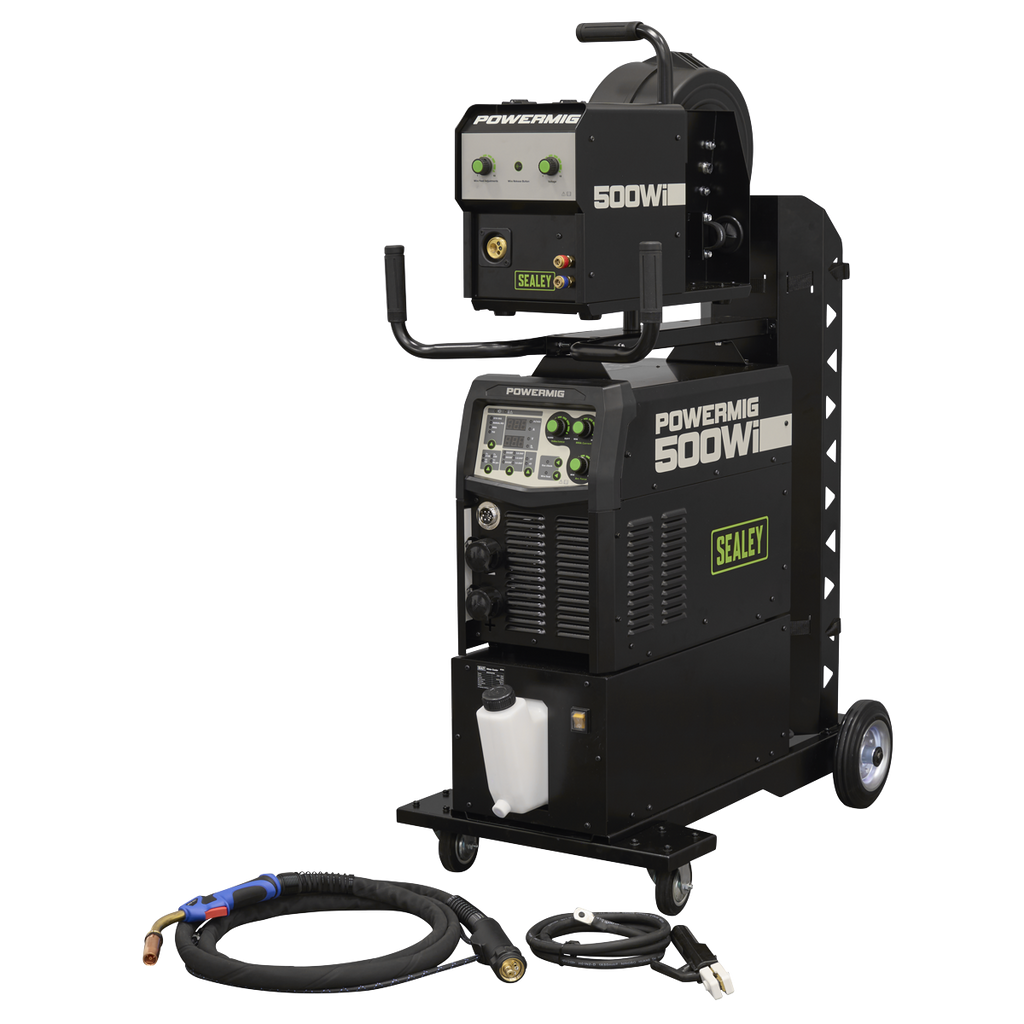

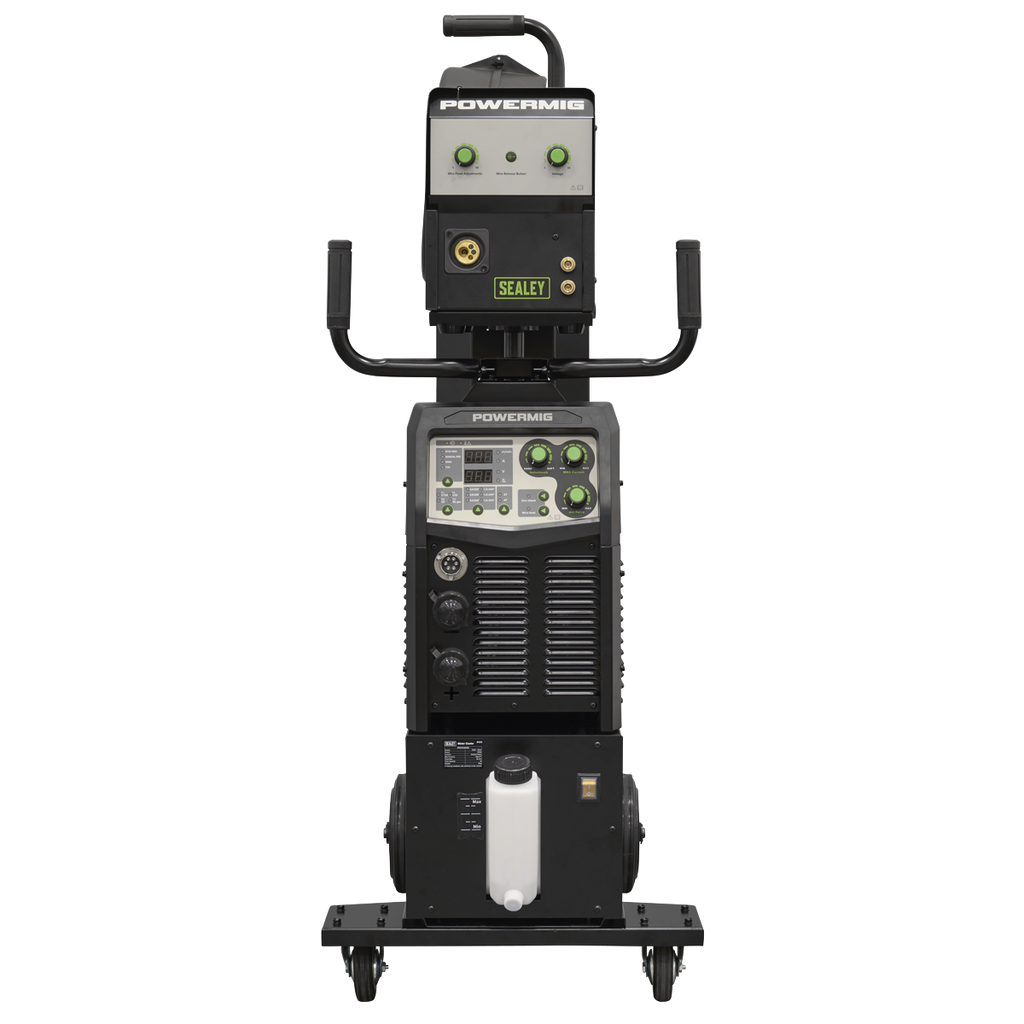

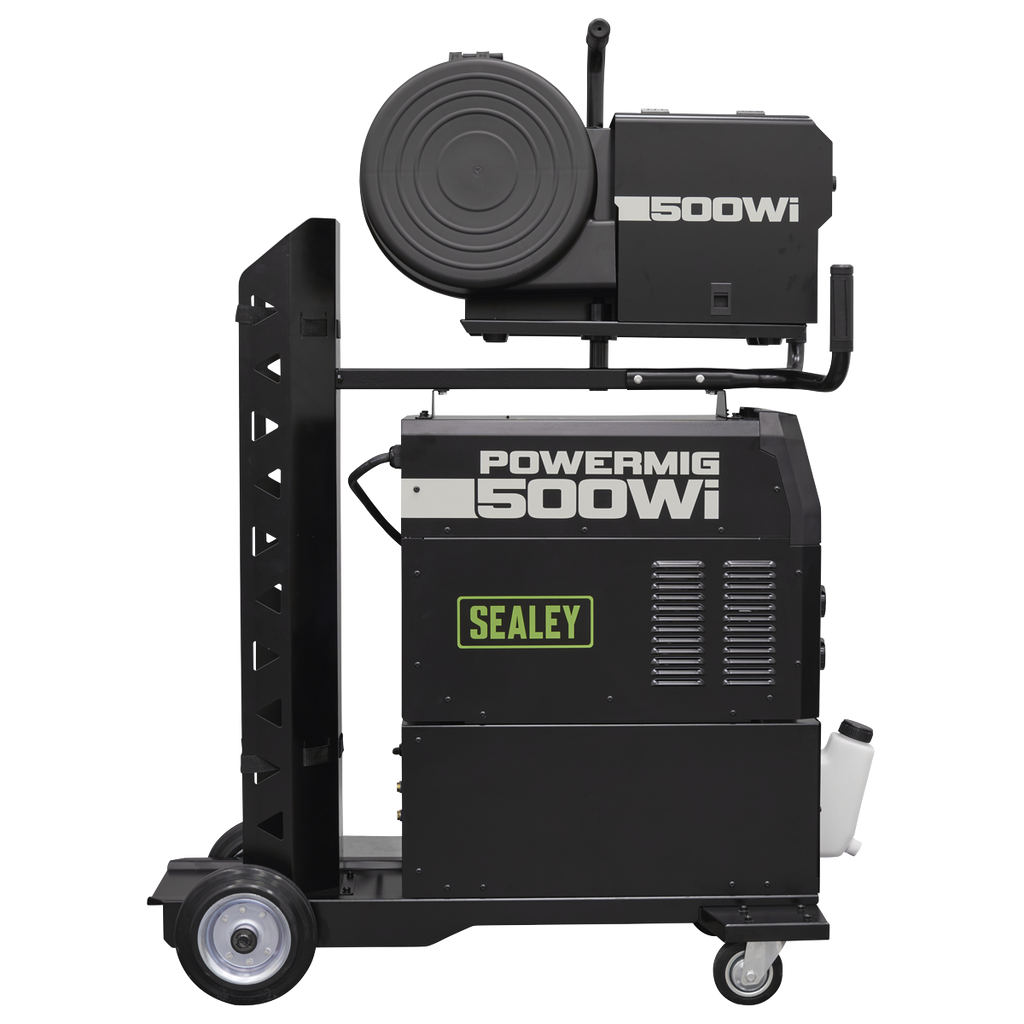

- MULTI PROCESS INVERTER WELDER - Multi process IGBT inverter Gas/Gasless MIG/TIG/MMA welder suitable for professional fabricators and workshops, as well as mechanics and technicians.
- PORTABLE WIRE FEEDER – Equipped with a portable wire feeder enabling access into high or tight spaces that would otherwise be difficult to reach.

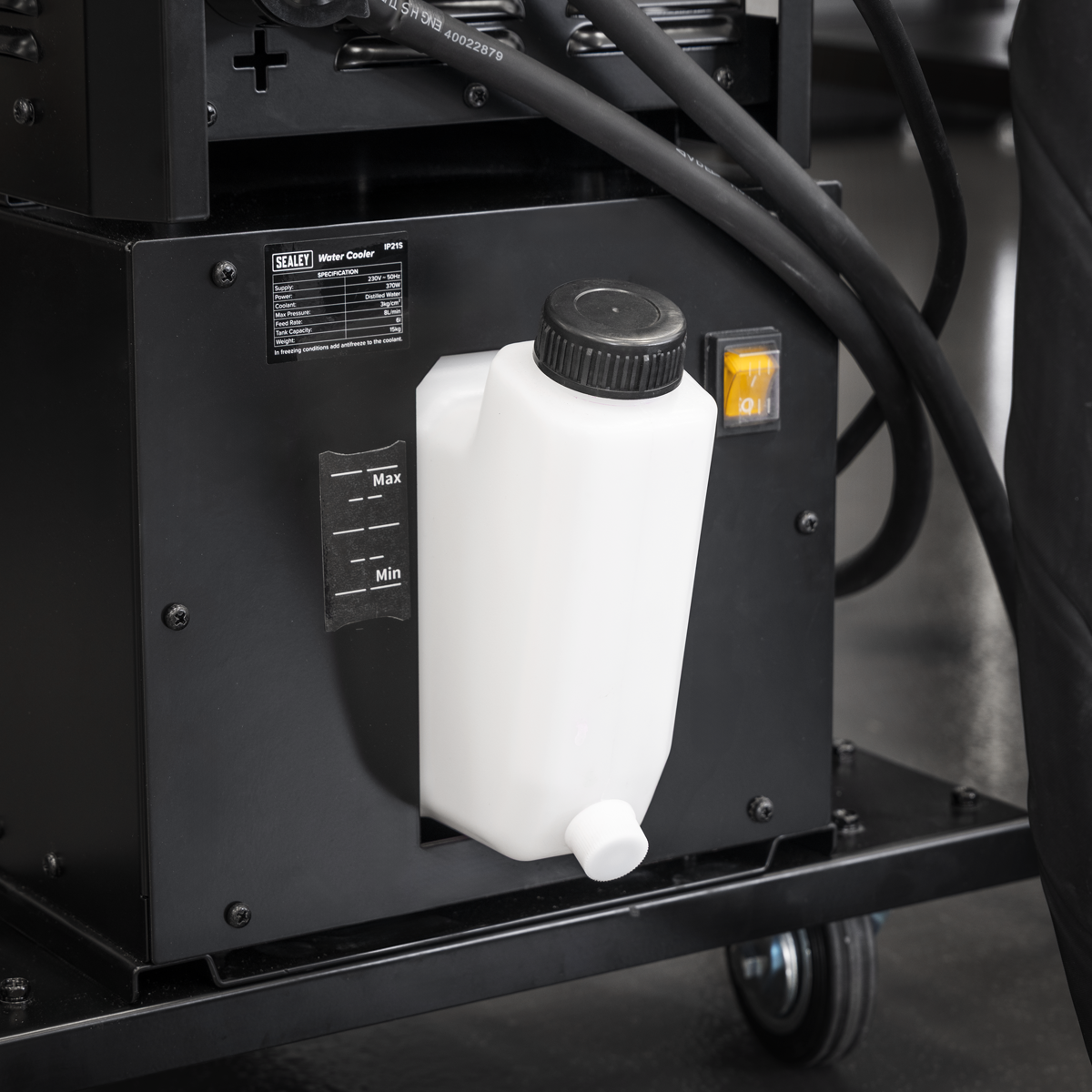

- WATER COOLED – In-built water cooler allows the torch to remain cooler for longer enhancing efficiency and productivity.
- 500A MAX OUTPUT - Maximum 500A output, ideal for welding a large variety of metals including steel, stainless steel up to 20mm.
- 2T/4T TRIGGER FUNCTION - 2T/4T Torch trigger function allowing greater precision during longer welds.

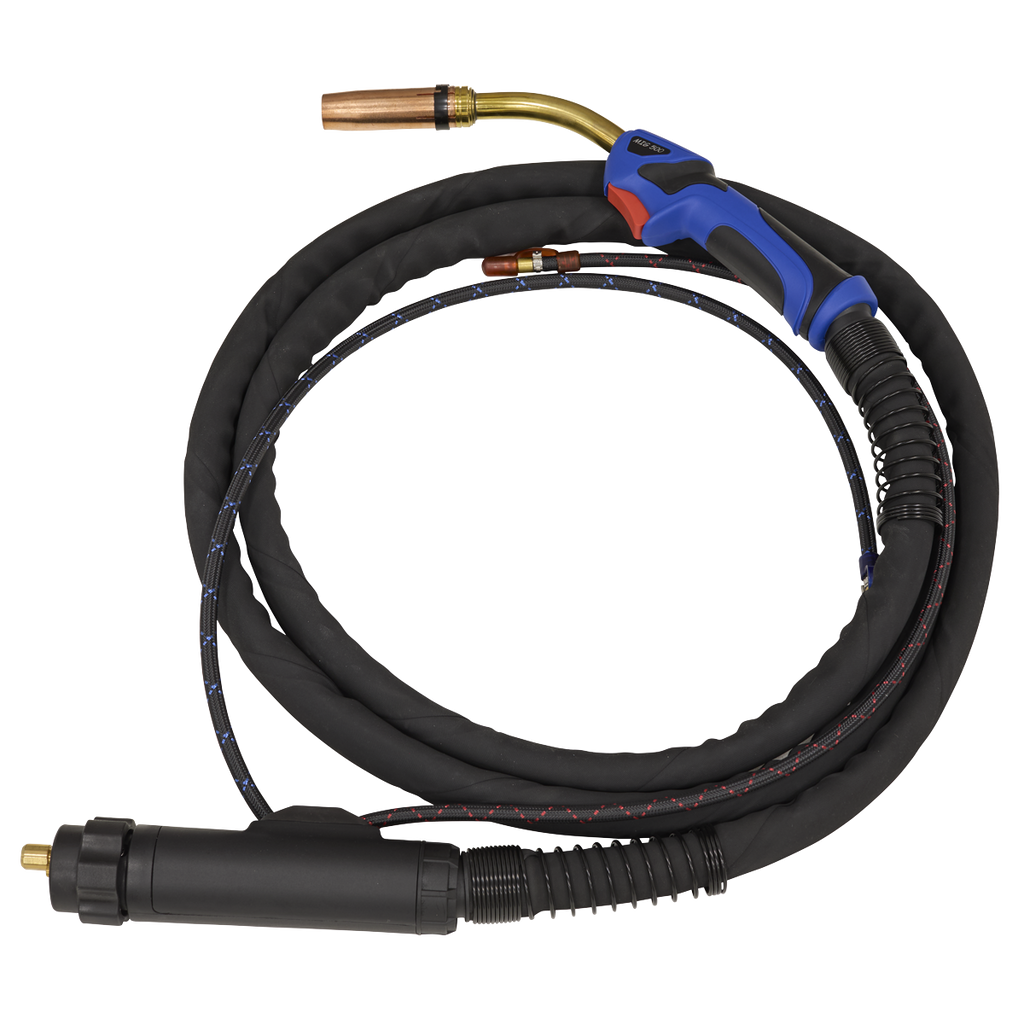

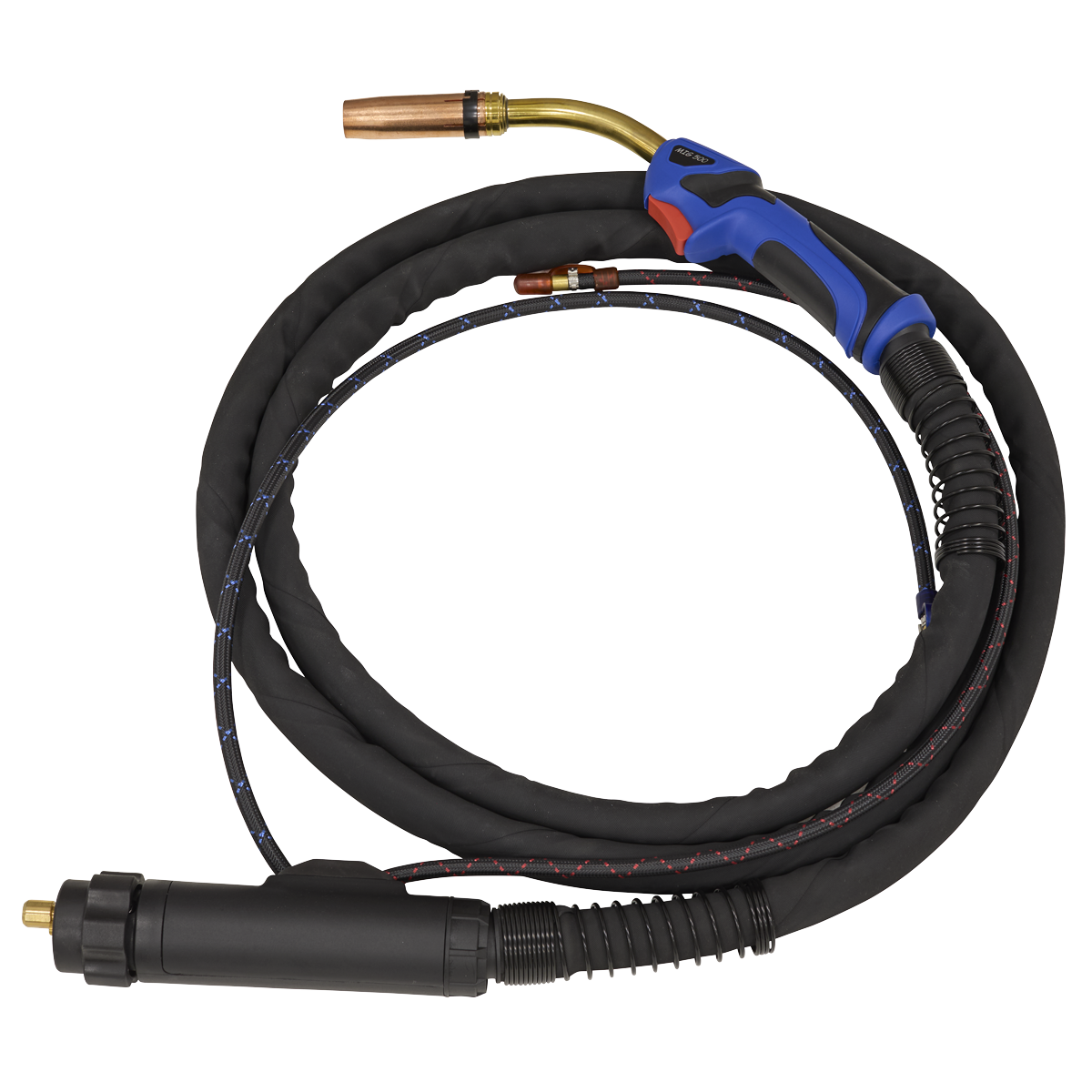

- ACCESSORIES INCLUDED - Supplied with 2m power cable, 2m earth clamp, 3m Euro Mig torch and 2m Electrode holder.
- WIRE CAPACITY - Wire capacity of 5-15kg with a diameter of 0.6mm to 1.6mm.
- ELECTRODE CAPACITY - Electrode capacity from 1.6mm to 5mm.
- 3 YEAR GUARANTEE*.
Warranty: 3 years
Specifications
| Brand | Sealey |
|---|---|
| Product code | POWERMIG500Wi |
| EAN | 5054630530302 |
| Nett Weight | 97.1kg |
| Welding Current | 30-500A |
| Wire Capacity | 5-15kg |
| Electrode Capacity | 1.6-5mm |
| Duty Cycle MIG | 60% @ 500A |
| Duty Cycle TIG | 60% @ 500A |
| Duty Cycle MMA | 60% @ 500A |
| Gas Type | CO2, Argon, CO2/Argon Mix |
| Mig Torch (inc) | 3m Euro Non-Live Torch |
| Supply | 400V 3ph |
| Power Supply Cable Length | 2m |
| Weight | 55.7kg |
| IP Rating | IP21S |
| Absorbed Power | 19.04kW |
| Input Current | 39.5A (MMA), 40A (MIG) |
| Output Voltage | 50A/22V to 500A/40V (MMA), 30A/15.5V to 500A/39V (MIG) |
| No Load Voltage | 85V (MMA), 85V (MIG) |
| Efficeincy | 0.8 |
| Supply | 230V - 50Hz |
| Power | 370W |
| Coolant | Distilled Water |
| Max Pressure | 3kg/cm² |
| Feed Rate | 8L/min |
| Tank Capacity | 6L |
| Weight | 15kg |
| Note* | In freezing conditions add antifreeze to the coolant. |
| Weight | 116.0 kg |
