Description
Sealey Tool Promotion - offer price ends 31 December 2026
- PSA DIESEL ENGINE - Suitable for use with 1.4 (DV4), 1.5 (DV5) and 1.6 (DV6) HDi diesel engines.

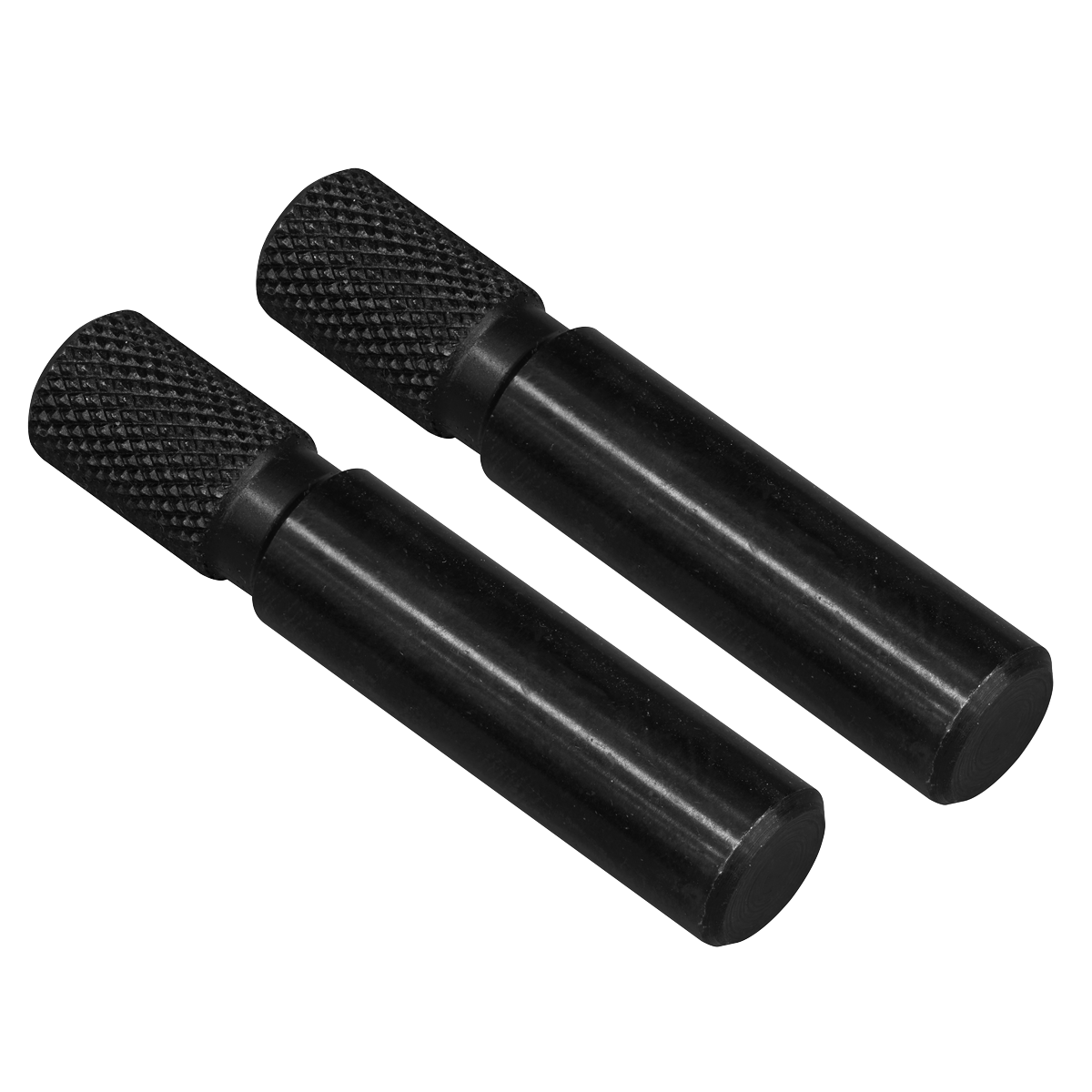

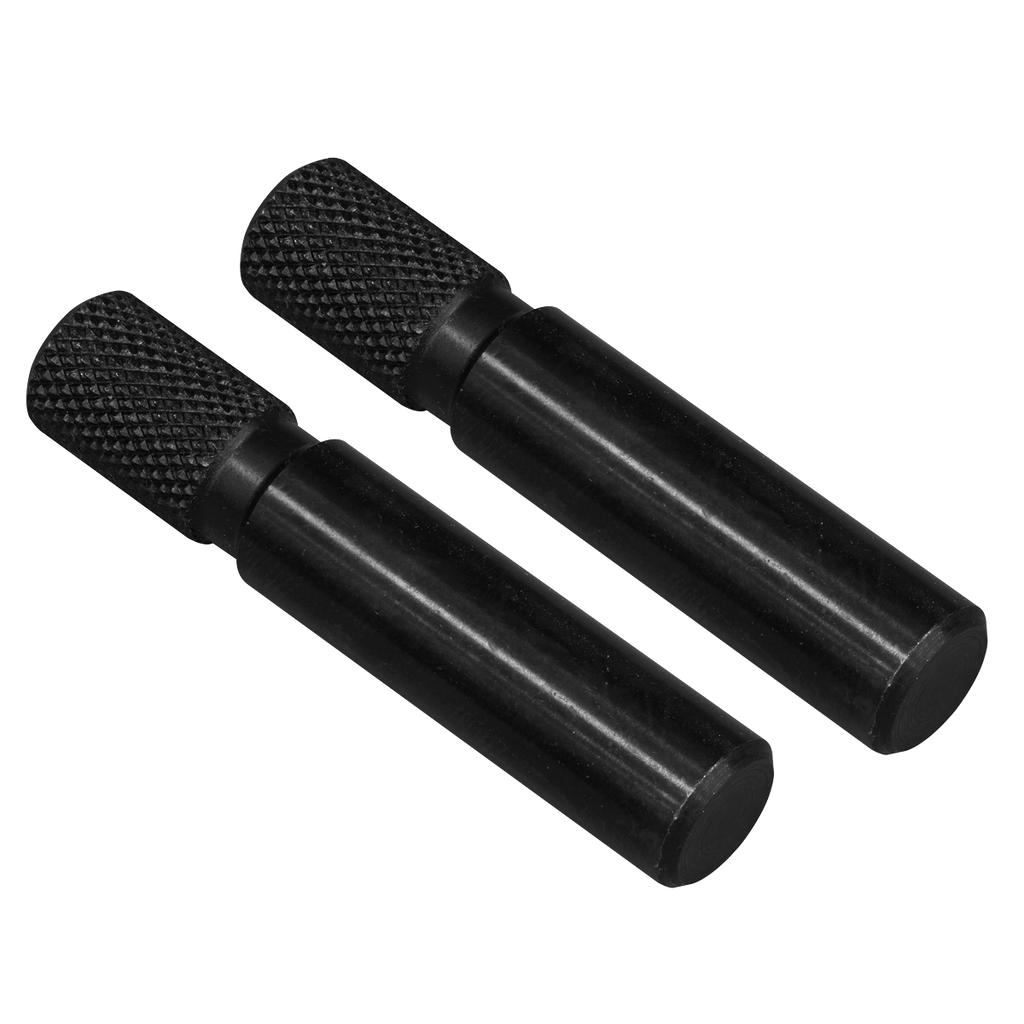

- ALIGNMENT PINS - Used for correct alignment of the camshaft carrier during timing chain-in-head replacement procedures.
- CAMSHAFT CARRIER - Ensures correct location of the camshaft carrier during reassembly of the engine.
- OEM TOOLS - Equivalent to 0194-N, 2.000.022.900, 303-245, 303-034, EN-52146, T9997170
- TIME SAVING - Makes assembly a simpler and more accurate process.
Warranty: 1 year
Specifications
| Brand | Sealey |
|---|---|
| Product code | VS5339 |
| EAN | 5054630735547 |
| Citroen | C1 (05-10), C2 (02-10), C3 (02-10), C3 1 (02-10), C3 II (02-10), C3 III (04-18), C3 Pluriel (2012), C3 Classic (02-10), C3 Aircross (18-21), C3 Picasso (04-17), C4 (07-11), C4 II (11-18), C4 III (00-04), C4X (02-26), C4 Picasso (00-18), C4 Grand Picasso (06-18), C4 Cactus (18-21), C4 Aircross (07-10), C4 Sports Tourer (18-24), C4 Grand Sports Tourer (18-25), C5 Aircross (19-25) |
| Fiat | Scudo (07-16) |
| Ford | B-Max (12-15), C-Max (11-20), Grand C-Max (10-19), Ecoboost (13-23), Fiesta (02-13), Fusion (02-11), Focus (04-25), Galaxy (11-15), Kuga (20-23), Puma (20-23), S-Max (10-15), Tourneo Connect (13-24), Grand Tourneo Connect (15-24), Transit Connect (13-24), Transit Courier (20-26) |
| Mazda | 2 (02-10), 3 (03-14) |
| Peugeot | 107 (05-10), 1007 (05-10), 206 (01-09), 206 + (10-13), 206 CC (05-07), 207 (06-13), 207CC (07-15), 208 (13-23), 2008 (13-20), 308 (01-26), 308 CC (06-15), 308 SW (21-26), 3008 (09-18), 407 (05-15), 4008 (99-02), 508 (09-24), 5008 (02-15), Bipper (08-10), Rifter (18-24), Partner (05-11), Partner II (05-11), Partner III (02-17), Partner IV (18-24), Expert III (07-12) |
| Mini | Mini (06-15), Clubman (07-14) |
| Suzuki | Liana (04-08), SX4 (07-11) |
| Vauxhall | Combo E (18-21), Crossland (17-21), Grandland (17-21) |
| Associated tools | VSE5846, VSE5930, VSE5941 |
| 1.4D | 8HT (DV4TD), 8HW (DV4TD), 8HX (DV4TD), 8HV (DV4TED4), 8HX (DV4TD), 8HV (DV4TED4), 8HX (DV4TED4), 8HZ (DV4TD), 8HY (DV4TED4) |
| 1.4D DDiS | DV4(8HY) |
| 1.4D HDi | DV4C(8HP), DV4C(8HR), DV4TD(8HX), DV4TD(8HZ), DV4TD(8HW), DV4TD(8HZ), DV4TED4(8HX), DV4TD(8HZ), DVTED4(8HV), DV4TED4(8HY), DV4TED(8HS), DV4TD(8HT) |
| 1.4D TDCi | F6JA, F6JB, F6JD |
| 1.5D HDi | YHX(DV5RCD), YHY(DV5RD), YHT(DV5RCF), YHY(DV5RD), YHS(DV5RCE), YHX(DV5RCD), YHZ(DV5RC), YHW(DV5RE), YHT(DV5RCF), YHZ(DV5RC), YHR(DV5RUCD), YHV(DV5RUC), DV5RC(YHZ) |
| 1.5D TDCi | UGJE, XXDD, XWDD, XWDE, XWDG, XVGA, XUGA, XWGA |
| 1.5D ecoBlue | ZTDA, ZTJA, ZTJB, ZTJC, ZTJD, ZTJE, Z2GA |
| 1.5D | LQJ/D15T, LQJ/D15H |
| 1.6D Blue-HDi | DV6C(BHX), DV6C(BHZ) |
| 1.6D DDiS | DV6(9HX) |
| 1.6D e-HDi | DV6FE(BHW), DV6FE(BHY), DV6FE(BXZ), DV6FD(BHY), DV6C(9HR), DV6C(9HD), DV6TED(9HD), DV6FC(BHW), DV6FC(BHX), DV6FC(BHY), DV6FC(BHZ) |
| 1.6D HDi Airdream | DV6C(9HL), DV6C(9HR), DV6C(9HD) |
| 1.6D HDi | DV6UTED4(9HX), DV6TED4(9HZ), DV6FD(BHY), DV6UTED4(9HU), DV6C(9HL), DV6C(9HR), DV6TED4(9HY), DV6C(9HD), DV6(9HR), DV6BTED4(9HW), DV6ATED4(9HX), DV6DTED(9HJ), DV6ETED(9HN), |
| 1.6D TDCi | T3JB, T1WA, T1WB, G8DF, T1DA, T1DB, T3DB, UBGA, T1GA |
| 1.6 JTD | 9H07 |
| Nett Weight | 0.105kg |
| PSA | 0194-N |
| Ford | 303-245 |
| Fiat | 2.000.022.900 |
| Mazda | 303-034 |
| Vauxhall | EN-52146 |
| Weight | 105 g |
