Description
Sealey Tool Promotion - offer price ends 31 December 2026

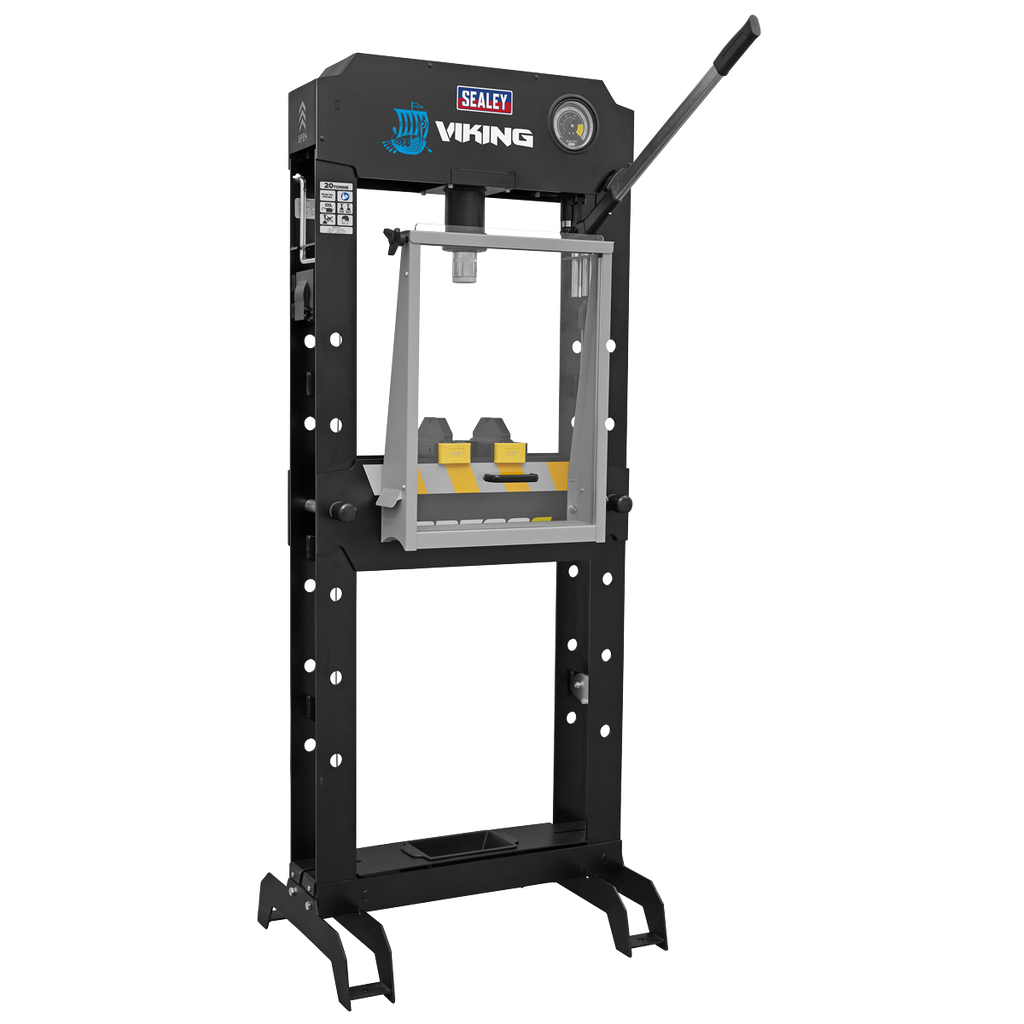

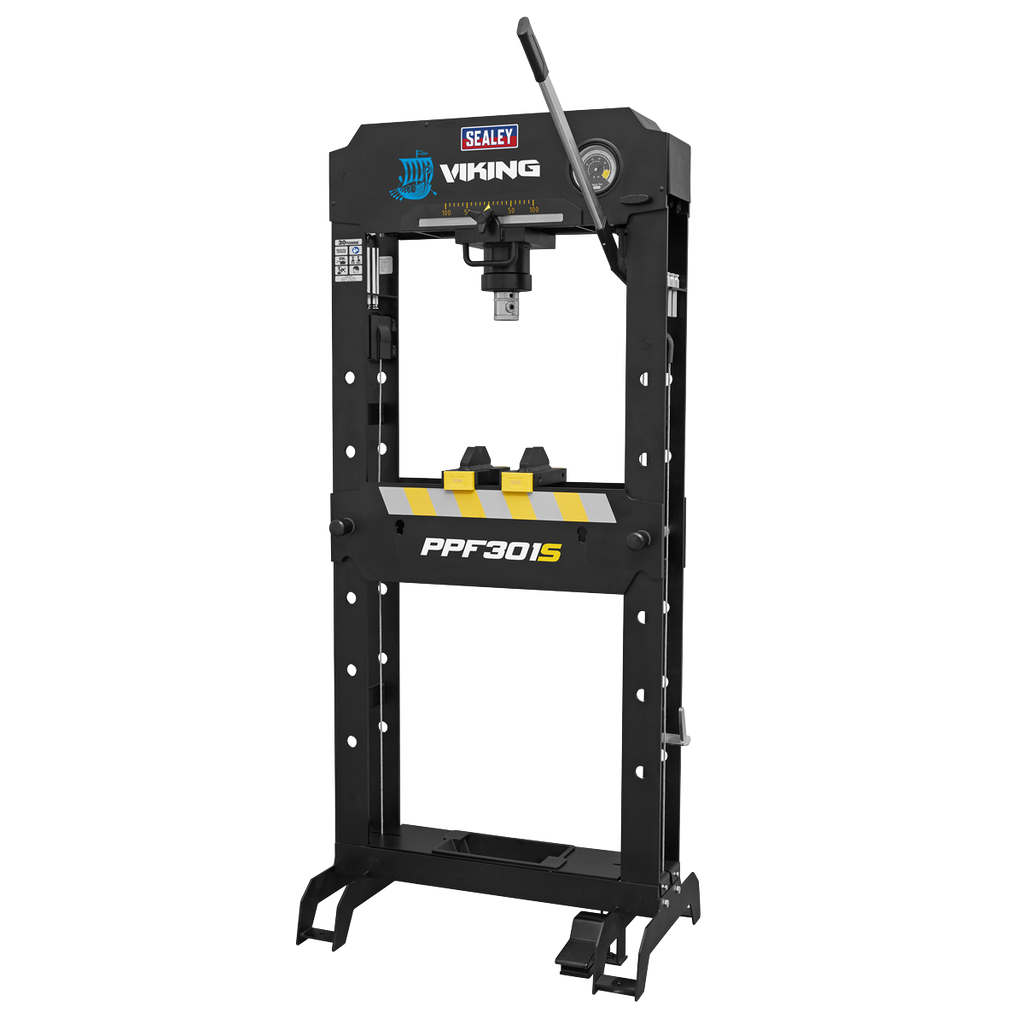

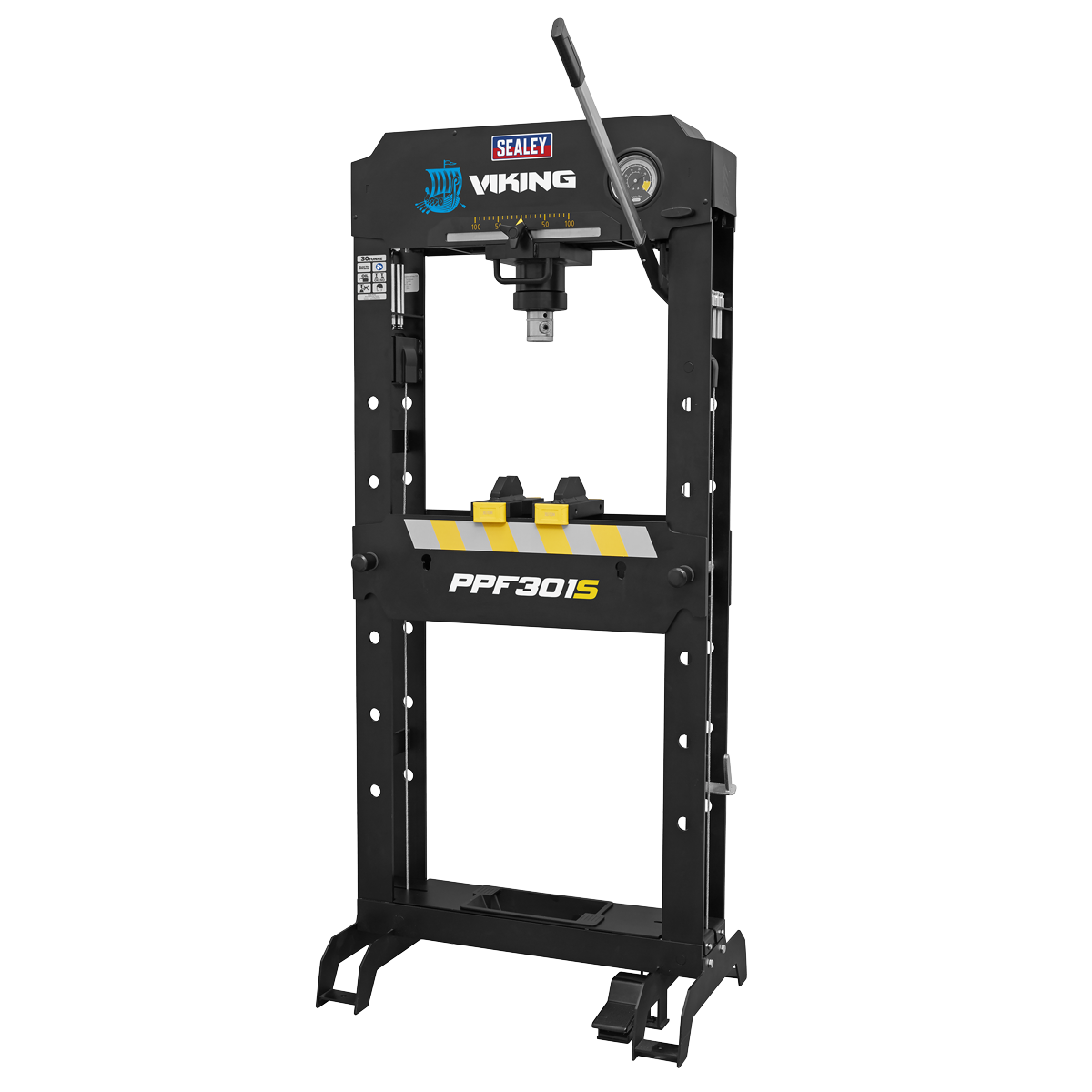

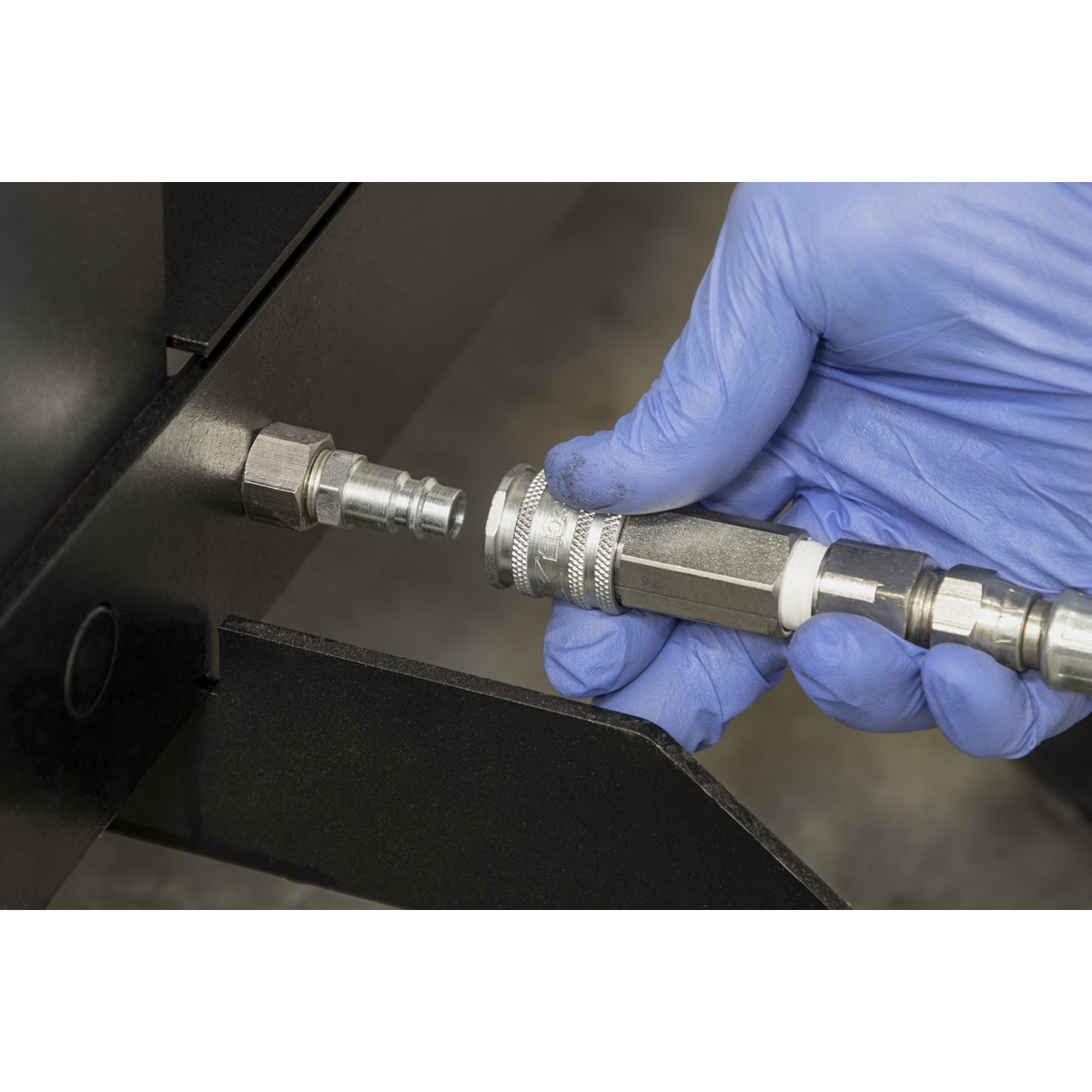

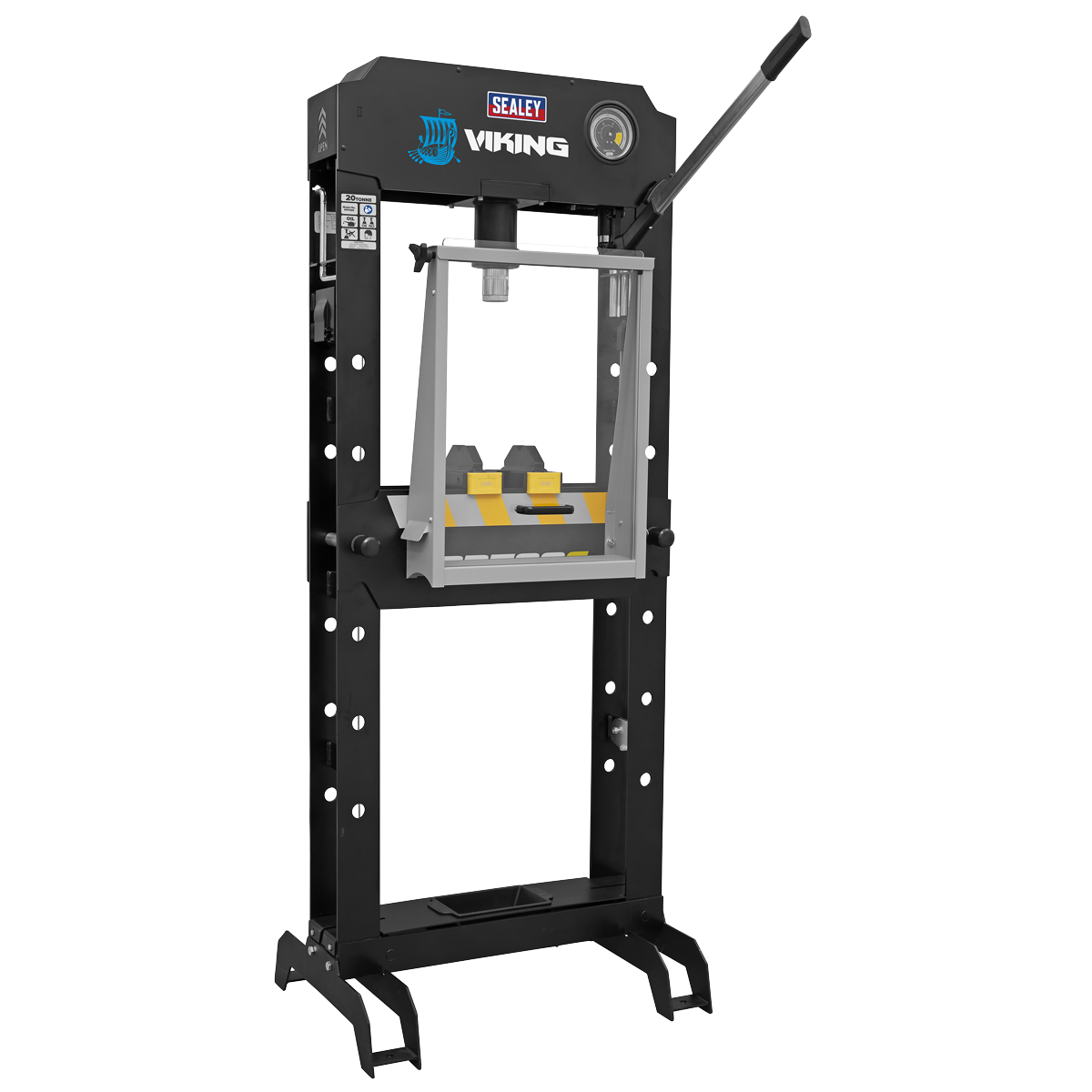

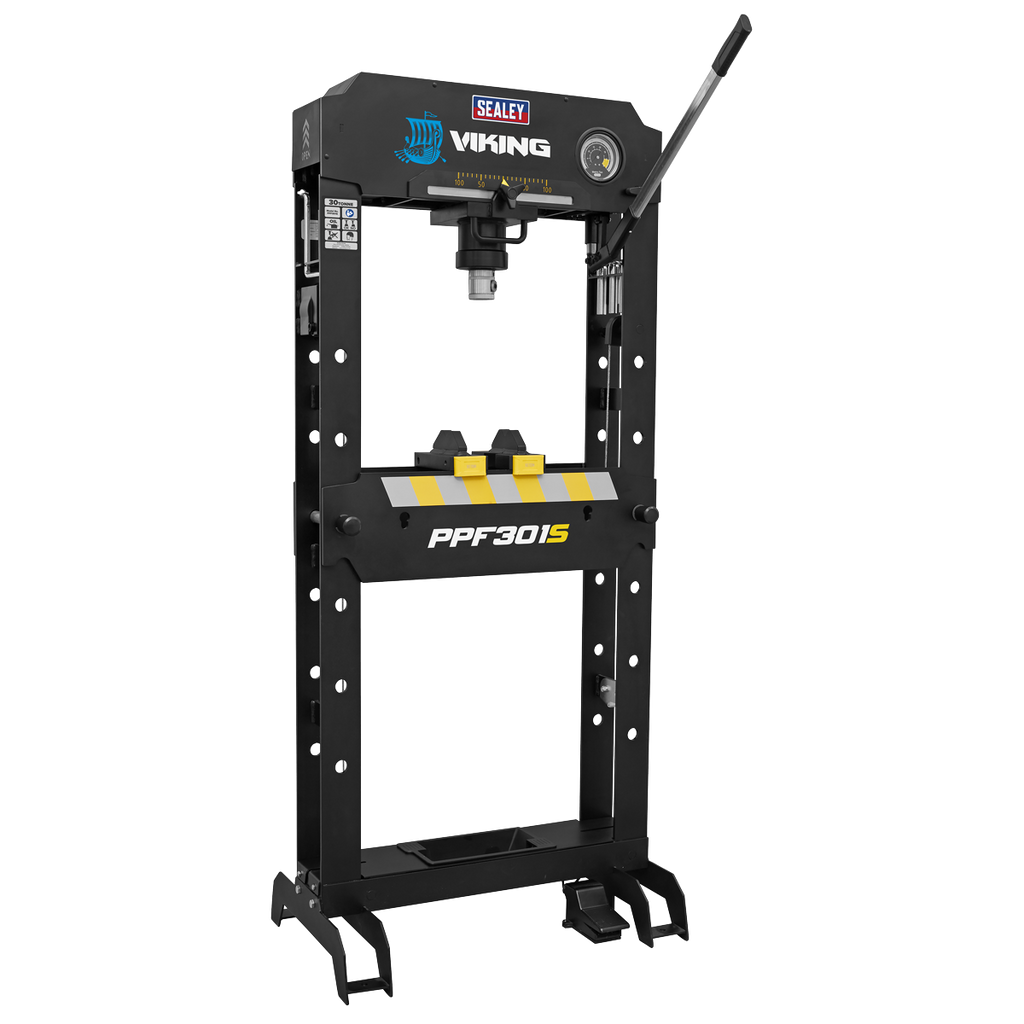

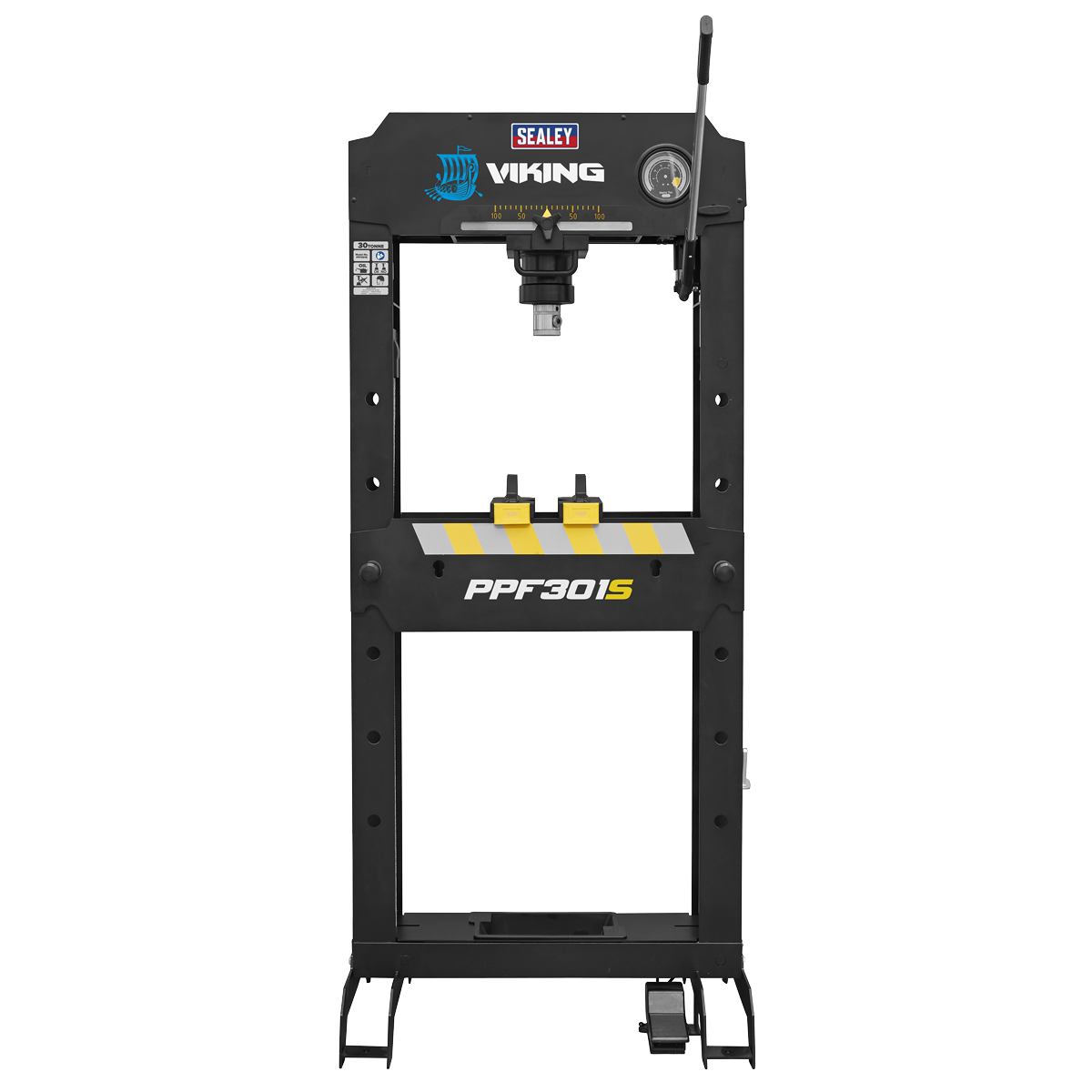

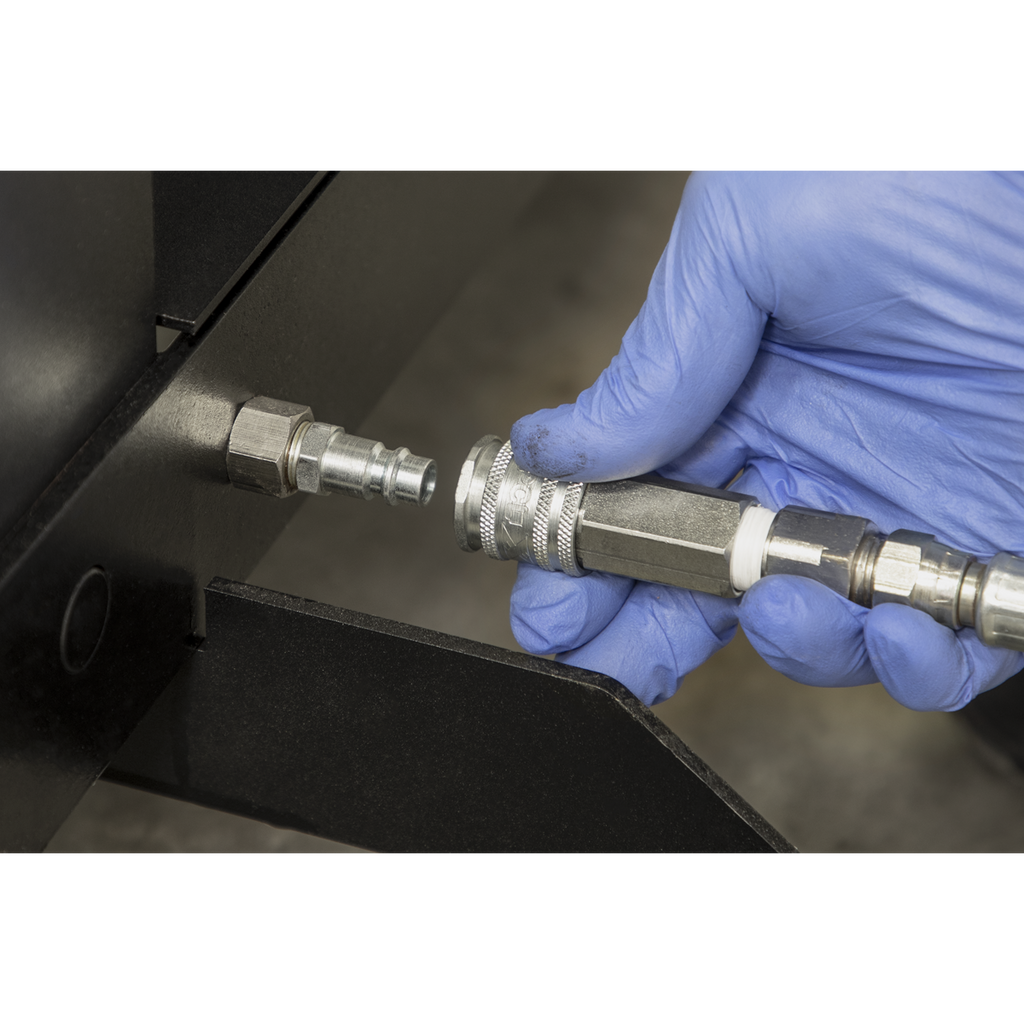

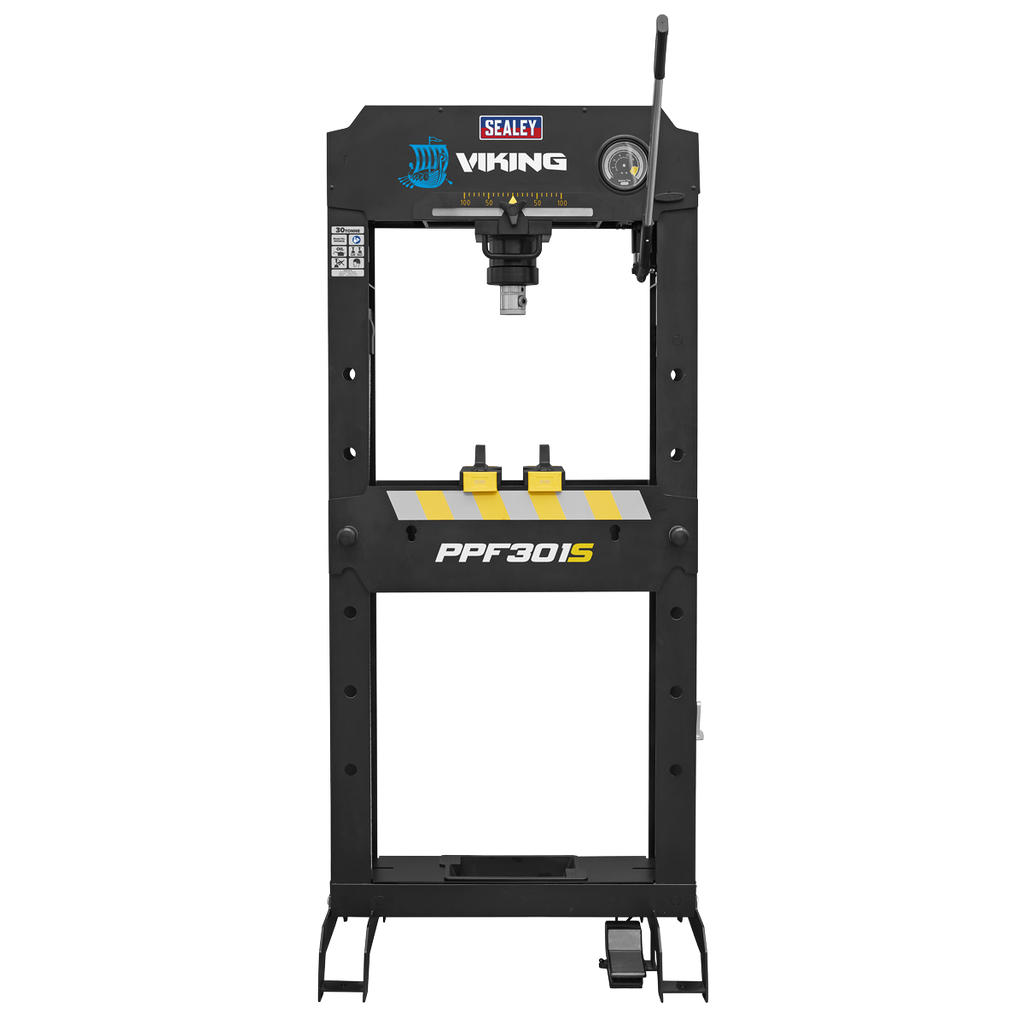

- Heavy-duty steel frame construction with integral air motor powering hydraulic pump unit.
- Screw adjustable ram and adjustable work area with removable tray.
- Sliding hydraulic ram assembly giving 200mm of lateral travel for off-centre pressing applications.
- Frame head fitted with ram pressure gauge.
- Winch assisted press table adjustment.
- Storage for press pins included in frame.
- Supplied with press pins, flat pressing plate/V-blocks.
- 5 Year guarantee*.
- This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Warranty: 5 years
Specifications
| Brand | Sealey |
|---|---|
| Product code | PPF301S |
| EAN | 5054630135002 |
| Air Consumption | 4.5cfm |
| Bench or Floor Mounting | Floor |
| Capacity | 30 Tonne |
| Gauge Included | Yes |
| Lateral Ram Travel | 200mm |
| Maximum Height - Ram to Table | 850mm |
| Minimum Height - Ram to Table | 25mm |
| Nett Weight | 162.5kg |
| Operating Table Width | 600mm |
| Overall Height | 1800mm |
| Ram Diameter | Ø103.2mm |
| Ram Stroke | 220mm |
| Screw Extension | 75mm |
| Table Aperture | 168mm |
| Type | Floor |
| Working Table Depth | 188mm |
| Working Table Width | 770mm |
| Weight | 200.0 kg |
