Description
Designed specifically for the 2.0 dCi M9R diesel engines found in Renault, Nissan, and Vauxhall/Opel vehicles, this diesel injector puller is a vital tool for safely removing deep-seated Piezo and solenoid injectors.
These engines are known for tightly fitted injectors that can be extremely difficult to remove without the correct tools.

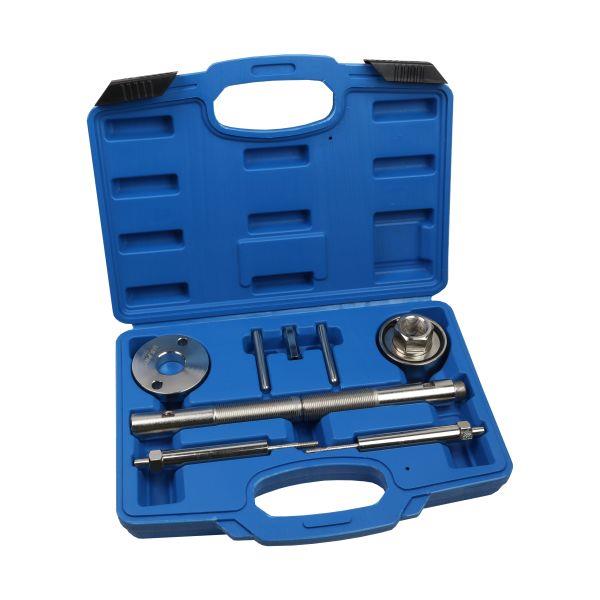

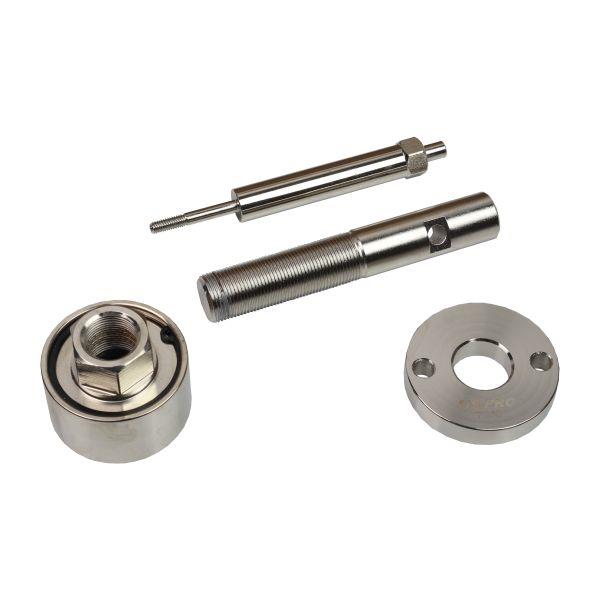

The kit includes two heavy-duty force screws:
-
M14 x 1.5mm female – for Piezo-type injectors
-
M17 x 1.0mm male – for solenoid-type injectors
This tool operates similarly to OEM extractor tools (Nissan 7711381966, Renault MOT.1966, Vauxhall/Opel EN-50143), using a compact but robust threaded puller to draw the injector out.
For best results, apply a penetrating release agent and run the engine to temperature prior to removal.
Only suitable for use with hand tools – do not use with impact wrenches.
Applications:
Nissan
- Primastar (2006-2015)
- Qashqui (2007-2014)
- X-Trail II (2007-2014), X-Trail III (2014-2022)
Renault
- Espace IV (2006-2015), Espace V (2015-2018)
- Koleos (2008-2016)
- Laguna II (2005-2007), Laguna III (2007-2015)
- Megane III (2009-2017)
- Megan II (2006-2010), Megane III (2009-2017)
- Scenic II (2006-2009), Scenic III (2009-2016)
- Trafic II (2006-2015), Trafic III (2014-onwards)
- Vel Satis (2005-2010)
Vauxhall/ Opel
- Vivaro A (2006-2014), Vivaro B (2014--2019)
Engine codes:
- 2.0 dCi - M9R 630, M9R 692, M9R 780, M9R 782, M9R 784, M9R 786, M9R 788
Puller for deep seated Injectors found in M9R diesel engines
Includes 2 force screws: M14 x 1.5mm female force screw for Piezo injector and M17 x 1.0mm male for Solenoid type injectors
