Description
This wheel bearing tool kit is designed to remove and install 72mm GEN2 front wheel bearings across the VAG range.
Suitable for Audi, Seat, Skoda and Volkswagen vehicles using 72mm Generation 2 bearings.
Generation 2 style wheel bearings are a combined wheel bearing and drive flange that cannot be separated.
By using clamshell and force plates, the tool ensures the insertion load is taken only on the outer race of the bearing.
It can be used in situ without the need to remove the strut or hub from the vehicle.
Note: No instructions included. Intended for installation by a suitably trained person.
Key Features:
- Removes and installs 72mm GEN2 front wheel bearings
- Suitable for VAG vehicles including Audi, Seat, Skoda and VW
- Clamshell and force plate design loads only the outer race of the bearing
- In situ operation without removing the strut or hub
- High strength drive spindle for reliable service

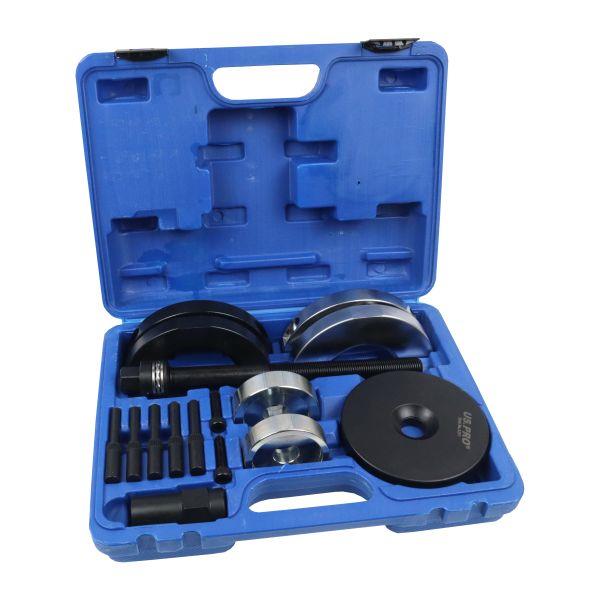

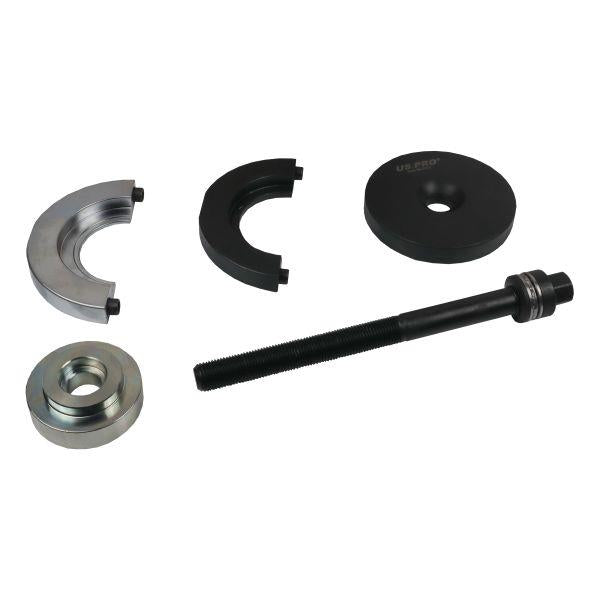

Contents:
- 1 x high strength drive spindle with bearing
- 1 x pair of shells for dismantling (72mm)
- 1 x dismantling plate
- 1 x pair of shells for installation (72mm)
- 1 x installation plate
- 2 x bolts to secure shells
- 1 x pressure plate with 8 holes
- 5 x pressure plate bolts
- 1 x hex key
