Description

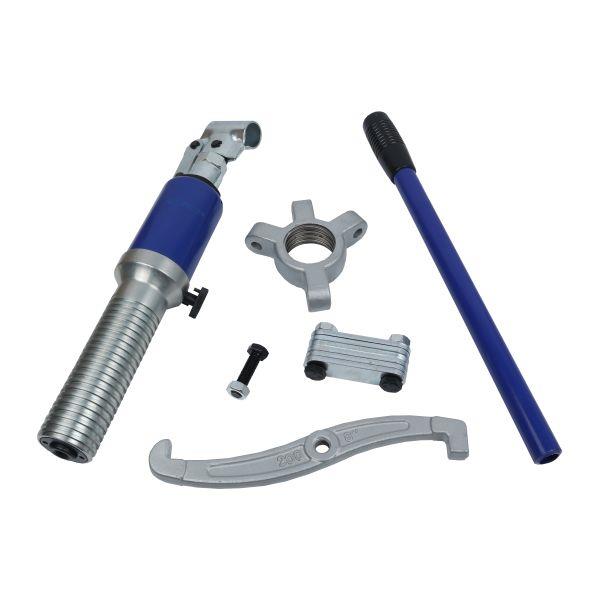

This hydraulic puller is designed for the removal of bearings, flywheels, gears, hubs and pulleys in automotive and workshop applications.
It can be configured for either 2 jaw or 3 jaw operation, providing flexibility for different component sizes and access requirements.
The 5 ton hydraulic pulling force allows efficient removal of stubborn or seized parts with reduced manual effort.
A hand operated pump applies the pulling pressure, while the side mounted return valve allows controlled release.

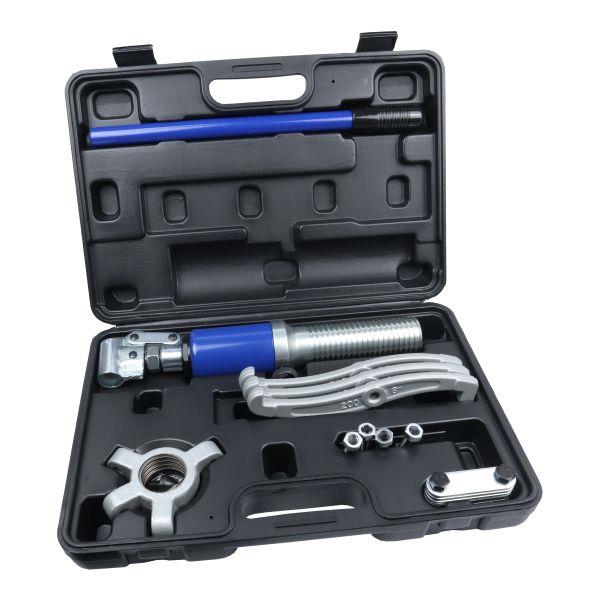

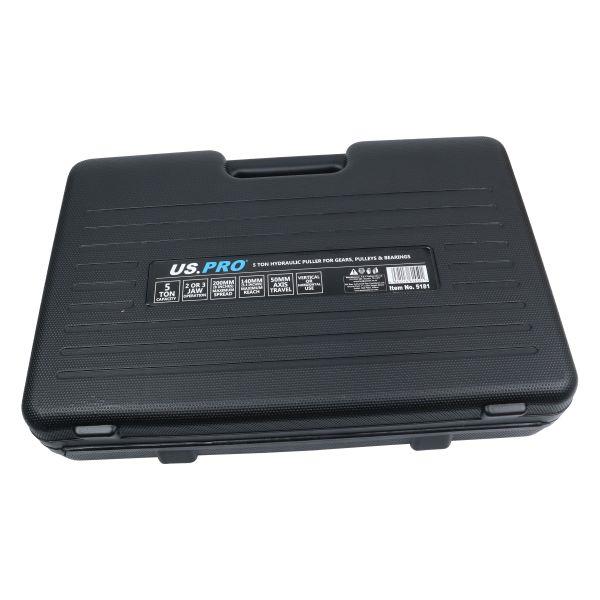

The puller can be used in both horizontal and vertical positions and is supplied in a storage case for protection and easy transport.
Key Features:
- 5 ton hydraulic pulling force
- 2 jaw or 3 jaw operation
- Hand operated hydraulic pump
- Side mounted return valve
- Suitable for horizontal or vertical use
- Supplied with storage case
Specifications:
- Maximum spread: approximately 200mm (8 inches)
- Maximum reach: approximately 140mm (5.5 inches)
- Axis travel: approximately 50mm (2 inches)
