Description

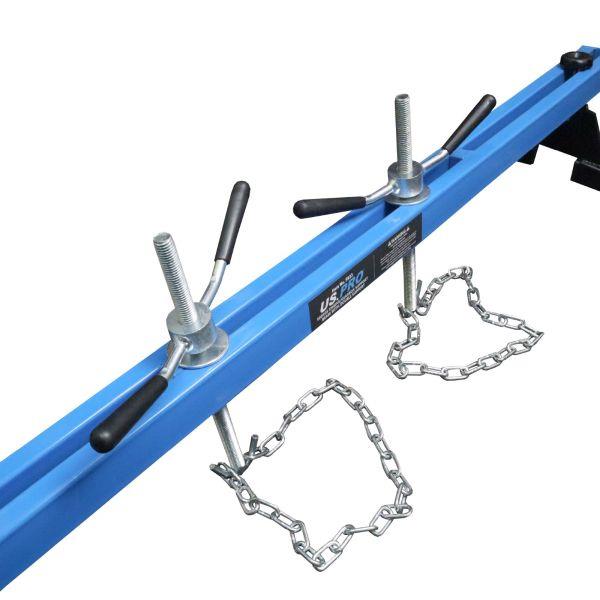

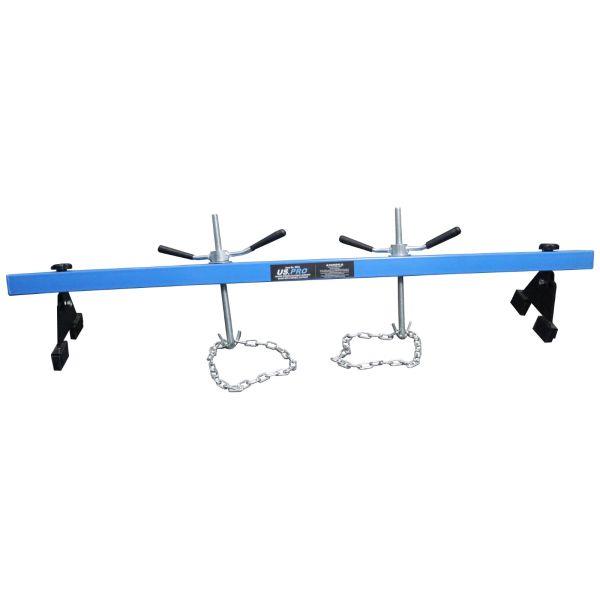

This engine and gearbox support beam is designed to support and accurately position engines during the removal of gearboxes and transmissions.
It can also be used during maintenance operations such as replacing anti-vibration mountings and certain body panels.
The beam is supported on rubber feet to help prevent damage to the vehicle.
Fine adjustment screws allow for better load balancing when supporting the engine or gearbox.
The double hook mechanism helps improve balance across the load.
Height adjusters with bearings provide a smooth adjustment action.
Supplied with two 680mm lengths of chain.
Key Features:
- Engine and gearbox support beam with double support
- Maximum capacity: 500kgs (1100lbs)
- Operating range width: 730-1480mm
- Height adjustment: 0-200mm
- Rubber feet pads help prevent damage to the vehicle
- Fine adjustment screws for improved load balancing
- Double hook mechanism for better balance
- Height adjusters with bearings for smooth operation
- Steel construction with powder-coated finish for protection
Contents:
- Engine and gearbox support beam
- 2 x 680mm lengths of chain
Specifications:
- Maximum capacity: 500kgs (1100lbs)
- Operating range width: 730-1480mm
- Height adjustment: 0-200mm
- Material: steel
- Finish: powder-coated
