US PRO Tools Ford Transit Timing Tool Kit Sprocket Fuel Pump Tool 2.0 2.2 2.4 3.2 7244

This US PRO Tools timing tool kit is designed for listed Ford Transit and related diesel engine applications.

It is used to remove and install the high pressure pump sprocket cover and lock the engine shaft in place.

The kit is suitable for use when changing the timing belt, replacing the injection pump or carrying out other engine repairs.

The sprocket fuel pump tool allows removal of the chain driven high pressure injection pump without removing the timing chain.

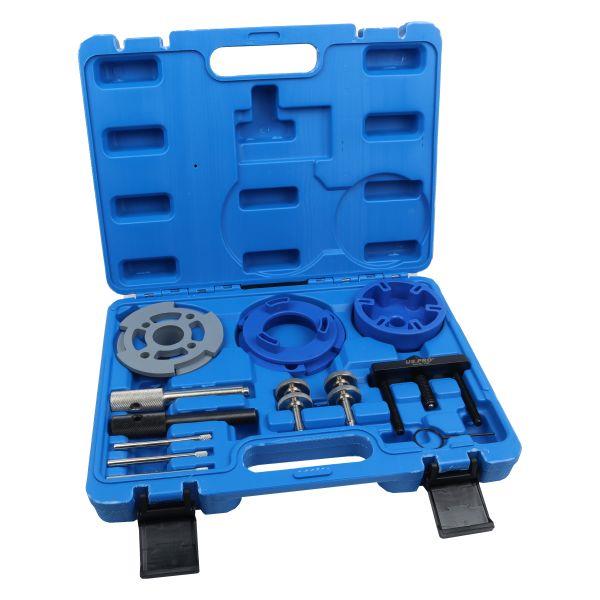

The kit includes flywheel locking pins, shoulder bolts, engine cover tools, sprocket fuel pump tool, pump removal tool and locking pins.

No instructions are included, so the kit is intended for use by a suitably trained person.

Key Features:

• Timing tool kit for listed diesel engine applications
• Suitable for Ford Transit and other listed vehicles
• Used for timing belt, injection pump and engine repair work
• Includes sprocket fuel pump tool
• Allows removal of chain driven high pressure injection pump without removing the timing chain
• Includes engine locking, alignment and pump removal tools

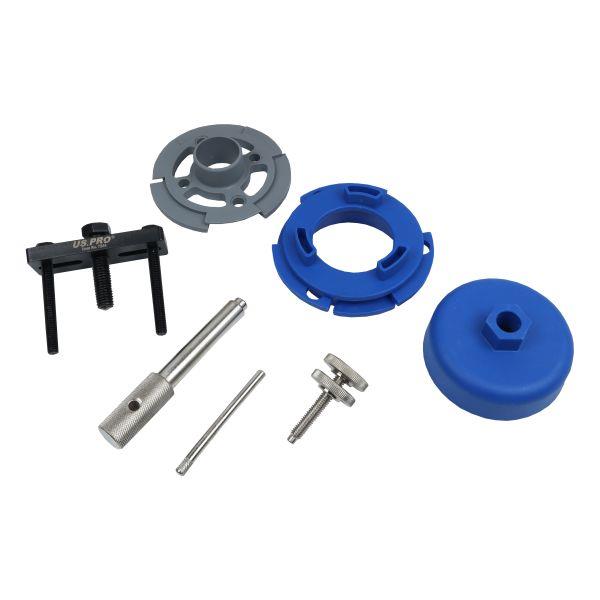

Contents:

• 2 x flywheel locking pin
• 2 x shoulder bolt
• 1 x engine cover alignment tool
• 1 x engine cover crankshaft seal tool
• 1 x sprocket fuel pump tool
• 1 x pump removal tool
• 1 x 6mm locking pin set
• 1 x 2mm tensioner locking pin

OEM References:

• 303-682, 303-679A, 303-1151, 303-249, 303-675, 303-698

Applications:

• Ford: 2.0, 2.2, 2.4 and 3.2 TDDi TDCi diesel engines
• Ford Puma, Mondeo 2000-2007, Transit 2000-2011
• Jaguar X-Type 2001-2010
• Land Rover Defender 2007-2011
• Fiat Ducato 2006-2011
• Citroen Jumper III and Relay 2006-2011
• Peugeot Boxer 3 2006-2011
• LDV Convoy 2002-2006

Engine Codes:

• 2.0L: ABFA, D3FA, D5BA, D6BA, F3FA, FIFA, FMBA, HJBA, HJBB, HJBC, HJBE, N7BA, N7BB
• 2.2L chain driven with high pressure pump: QJBA(BG), QJBB, QJBC, QJBD
• 2.2L camshaft driven high pressure pump: 4HM, 4HU, 4HV, P8FA, P22DTE, QVFA, QWFA
• 2.4L: 244DT, D0FA, D2FA, D2FB, D4FA, F4FA, FXFA, H9FA, H9FB, replacement for HEFA, HFFA, JXFA, PHFA, ZSD 424
• 3.2L: SAFA, only control times setting with engine code letters SAFA

Note:

• No instructions included
• Intended for installation by a suitably trained person
