Description

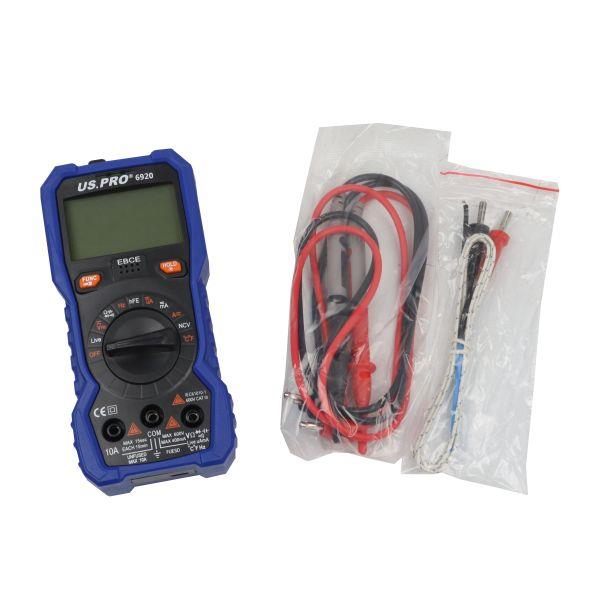

This intelligent LCD digital multimeter is a compact, user-friendly device designed for both professional and home electrical diagnostics.
With a clear backlit digital display, ergonomic grip, and shock-absorbing rubber casing, it delivers precision measurements with enhanced durability and ease of use.
The multimeter accurately measures AC/DC voltage (4V–600V), AC/DC current (10mA–10A), resistance, capacitance, temperature, frequency, and includes key features such as continuity buzzer, battery test, and True RMS readings.
The NCV (Non-contact Voltage Detection) and Live AC wire detection functions provide added safety when identifying live circuits.
Also includes helpful additions like a built-in torch, data hold, low battery indicator, and a rotary function selector for fast switching between modes.
Supplied with test leads, battery, and manual.
-
Voltage AC: 4V - 40V - 600V
-
Voltage DC: 4V - 40V - 600V
-
AC Current: 10mA - 100mA - 10A
-
DC Current: 10mA - 100mA - 10A
-
Resistance: 60Ω - 6kΩ - 60kΩ - 20MΩ
-
Battery test: 1.5V - 9V - 24V - 48V
-
Temperature: 0ºC - 999ºC
-
Capacitor function: 20nF - 200uF - 40mF
-
Frequency: 10Hz - 10kHz
-
NCV (Non-contact Voltage Detection)
-
Live AC wire detection
-
Back light
-
Data retention button
-
Continuity buzzer
-
Torch
-
Sample rate: 3 times per second with True RMS
-
Size: 155 x 70 x 55mm
-
Weight: 340grams
-
UKCA, RoHS
