Description
This US PRO Tools camshaft locking alignment timing tool kit is designed for setting and checking the timing position of camshafts and crankshaft on VAG EA888 petrol engines.
It is suitable for EA888 1.8 and 2.0 TSi/TFSi engines from approximately 2006 to 2018, including 1.8 R4 16v TSi/TFSi and 2.0 R4 16v TSi/TFSi applications.
The kit replaces multiple OEM special tools and is suitable for a wide range of Audi and Volkswagen 2.0T models.
Note: No instructions are included. Intended for use by a suitably trained person.
Key Features:
- Camshaft locking and alignment timing tool kit for VAG EA888 engines
- For 1.8 and 2.0 TSi/TFSi R4 16v petrol engines from around 2006 to 2018
- Allows accurate adjustment and checking of camshaft and crankshaft timing
- Replaces multiple OEM special tools for Audi and Volkswagen engines
- Comprehensive kit with camshaft, crankshaft and chain tensioner tools

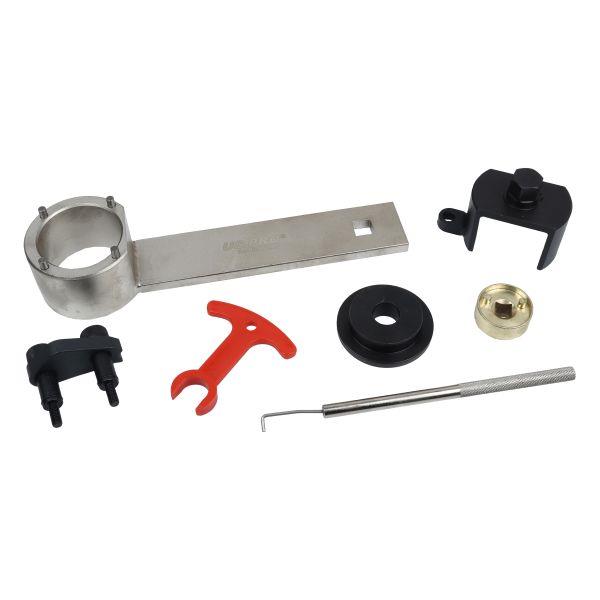

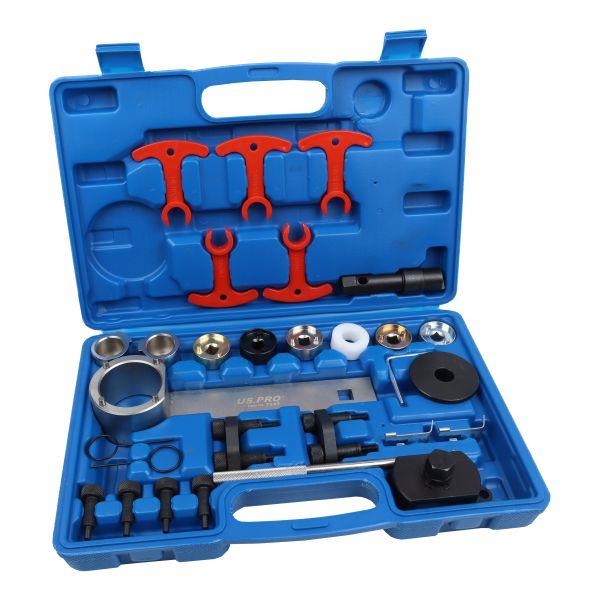

Contents:
- 5 piece engine camshaft sliding piece spacer tool (PP)
- 5 piece camshaft control valve removal tool (black finish, nickel finish, zinc finish and brass coated)
- 1 piece crankshaft thrust piece (PE)
- 1 piece exhaust fixing tool (black finish)
- 2 piece camshaft adapter socket (chrome plated)
- 1 piece crank counter hold tool (nickel finish)
- 1 piece 4mm zinc finish tensioner locking pin
- 1 piece black finish crankshaft seal
- 2 piece tensioner locking pin 1.4mm (black finish)
- 2 piece camshaft lock (black finish)
- 2 piece chain tensioner locking shim (zinc finish)
- 4 piece camshaft locking pin (black finish)
- 1 piece chain tensioner locking tool (nickel finish)
- 1 piece intake fixing tool (black finish)
OEM References (equivalent):
T10355A, T10352, T10352/1, T10352/2, T10352/3, T10352/4, T10368, T10354, T10060A, T40011, T40098, T40266, T40267, T40191, T40196, T40271.
Engine Codes (examples):
BYT, BZB, CABA, CABB, CABD, CADA, CAEA, CAEB, CAWA, CAWB, CBFA, CCTA, CCZA, CCZB, CCZC, CDAA, CDAB, CDHA, CDHB, CDNB, CDNC, CDND, CESA, CETA, CFKA, CGYA, CJEB, CJBA, CJSB.
Typical Applications (guide only):
Audi A3, A4, A5, A6, Q5, TT, Allroad 2.0T (various models approximately 2008-2015).
Volkswagen Beetle, EOS, Golf/GTI, Jetta, Passat B6, Tiguan, CC 2.0T (various models approximately 2008-2015).
